Photovoltaic fuse links NH gPV - Products & Solutions

NH0 gPV 32A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 32 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 7.6 W
Prearcing joule integral (A2s): 52
Operating joule integral (A2s): 430
Standards: IEC 60269-6
Application: Fuse link for DC application

NH0 gPV 40A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 40 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 8.8 W
Prearcing joule integral (A2s): 96
Operating joule integral (A2s): 730
Standards: IEC 60269-6
Application: Fuse link for DC application

NH0 gPV 50A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 50 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 11 W
Prearcing joule integral (A2s): 155
Operating joule integral (A2s): 920
Standards: IEC 60269-6
Application: Fuse link for DC application

NH0 gPV 63A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 63 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 13.5 W
Prearcing joule integral (A2s): 290
Operating joule integral (A2s): 1,760
Standards: IEC 60269-6
Application: Fuse link for DC application

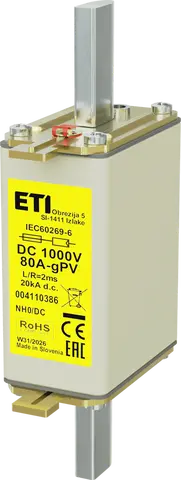

NH0 gPV 80A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 80 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 17 W
Prearcing joule integral (A2s): 520
Operating joule integral (A2s): 3,160
Standards: IEC 60269-6
Application: Fuse link for DC application

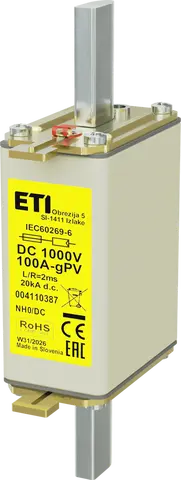

NH0 gPV 100A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 100 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 21 W
Prearcing joule integral (A2s): 1,110
Operating joule integral (A2s): 5,280
Standards: IEC 60269-6
Application: Fuse link for DC application

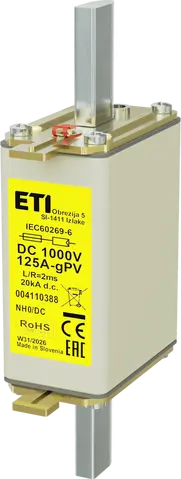

NH0 gPV 125A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 125 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 22 W
Prearcing joule integral (A2s): 2,800
Operating joule integral (A2s): 11,340
Standards: IEC 60269-6
Application: Fuse link for DC application

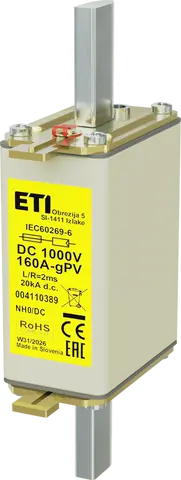

NH0 gPV 160A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH0
Rated current: 160 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 32 W
Prearcing joule integral (A2s): 5,950
Operating joule integral (A2s): 20,750
Standards: IEC 60269-6
Application: Fuse link for DC application

NH1C gPV 32A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 32 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 7.6 W
Prearcing joule integral (A2s): 52
Operating joule integral (A2s): 430
Standards: IEC 60269-6
Application: Fuse link for DC application

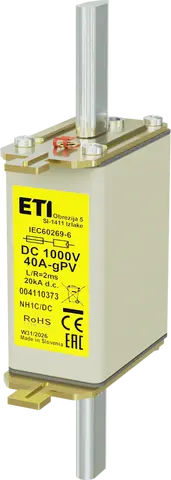

NH1C gPV 40A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 40 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 8.8 W
Prearcing joule integral (A2s): 96
Operating joule integral (A2s): 730
Standards: IEC 60269-6
Application: Fuse link for DC application

NH1C gPV 50A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 50 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 11 W
Prearcing joule integral (A2s): 155
Operating joule integral (A2s): 920
Standards: IEC 60269-6
Application: Fuse link for DC application

NH1C gPV 63A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 63 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 13.5 W
Prearcing joule integral (A2s): 290
Operating joule integral (A2s): 1,760
Standards: IEC 60269-6
Application: Fuse link for DC application

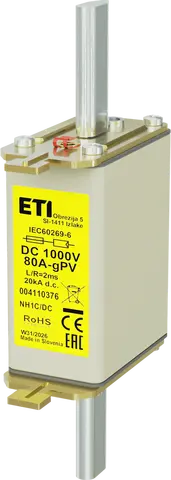

NH1C gPV 80A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 80 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 17 W
Prearcing joule integral (A2s): 520
Operating joule integral (A2s): 3,160
Standards: IEC 60269-6
Application: Fuse link for DC application

NH1C gPV 100A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 100 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 21 W
Prearcing joule integral (A2s): 1,110
Operating joule integral (A2s): 5,280
Standards: IEC 60269-6
Application: Fuse link for DC application

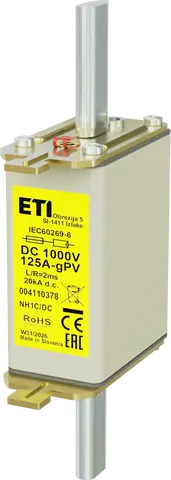

NH1C gPV 125A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 125 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 22 W
Prearcing joule integral (A2s): 2,800
Operating joule integral (A2s): 11,340
Standards: IEC 60269-6
Application: Fuse link for DC application

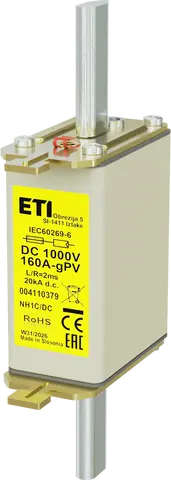

NH1C gPV 160A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1C
Rated current: 160 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 20 kA
L/R: 2 ms
Power dissipation: 32 W
Prearcing joule integral (A2s): 5,950
Operating joule integral (A2s): 20,750
Standards: IEC 60269-6
Application: Fuse link for DC application

NH1 gPV 200A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH1
Rated current: 200 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 30 kA
L/R: 1 ms
Power dissipation (0,7xIn): 11
Power dissipation: 27 W
Prearcing joule integral (A2s): 4,400
Operating joule integral (A2s): 29,000
Standards: IEC 60269-6
Application: Fuse link for DC application

NH2 gPV 200A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH2
Rated current: 200 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 30 kA
L/R: 1 ms
Power dissipation (0,7xIn): 11
Power dissipation: 26 W
Prearcing joule integral (A2s): 4,400
Operating joule integral (A2s): 29,000
Standards: IEC 60269-6
Application: Fuse link for DC application

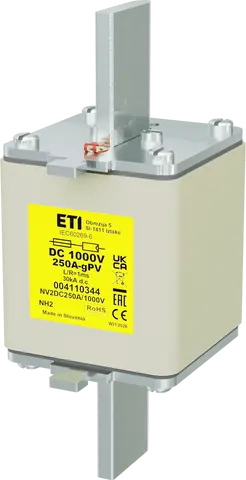

NH2 gPV 250A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH2
Rated current: 250 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 30 kA
L/R: 1 ms
Power dissipation (0,7xIn): 15
Power dissipation: 36 W
Prearcing joule integral (A2s): 6,000
Operating joule integral (A2s): 38,000
Standards: IEC 60269-6
Application: Fuse link for DC application

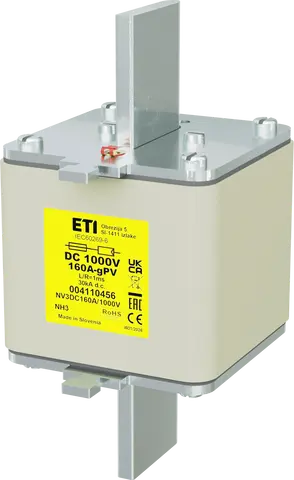

NH3 gPV 160A/1000V DC

Class name: Fuse link
Fuse type: NH
Size: NH3
Rated current: 160 A
Time-Current Characteristic: gPV
Indicator: Top fuse status indicator
Rated DC voltage: 1,000 V
Breaking capacity DC: 30 kA
L/R: 1 ms
Power dissipation (0,7xIn): 15
Power dissipation: 38 W
Prearcing joule integral (A2s): 5,000
Operating joule integral (A2s): 10,000
Standards: IEC 60269-6
Application: Fuse link for DC application
