Our industrial plugs and sockets are designed for connecting electrical devices and consumers to low voltage power sources across a wide range of applications.

001105246

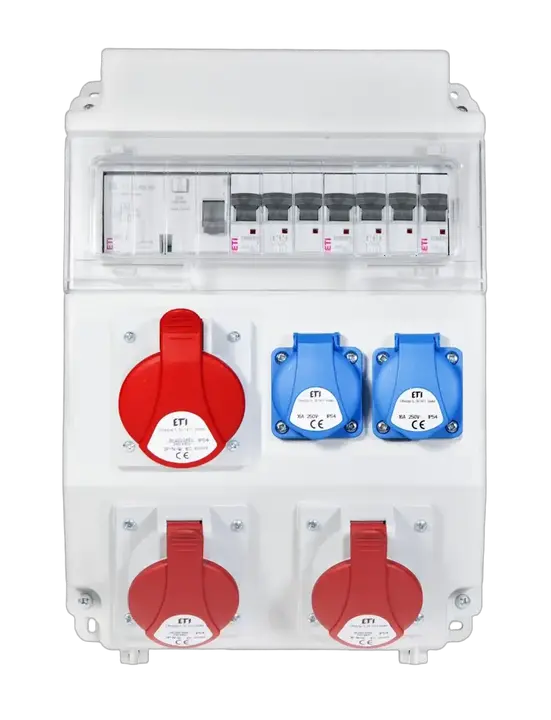

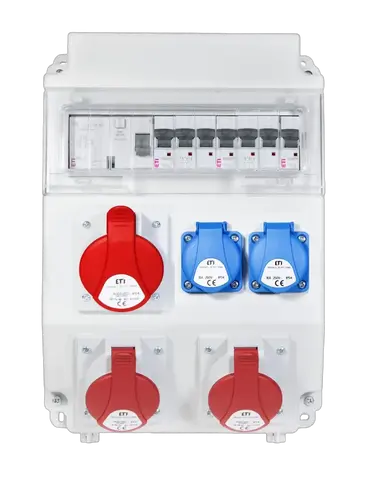

Image of EDS11 RCD 2/3 16/32 C

EDS11 RCD 2/3 16/32 C Assemblied distribution box

ETI Code:: 001105246
Rated AC voltage:: 400 V
Rated DC voltage:: 400 V
Rated current:: 40 A
Type: socket/plug:: 2x16A(5P), 1x32A(5P), 2xGROUND PIN
Number of modules:: 11
IP rating:: IP54
Number of MCBs applied:: 1xC16/1, 1xC16/3, 1xC32/3
Additional devices:: with RCD

Technical data catalog

Product

Net weight of the product: 3.8 kg
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400122735
Transport packaging weight: 3.8 kg
Transport Packaging Dimensions Height: 330 mm
Transport Packaging Dimensions Width: 250 mm
Transport Packaging Dimensions Depth: 170 mm
Transport packaging volume: 14.025 dm³
Pallet quantity: 71 pcs
Customs tariff: 85371098

CEE socket outlet 16 A: 2x16A5p400V
Width: 241 mm
Protection: Overcurrent switch
CEE socket outlet 63 A: None
Degree of protection (IP): IP54
CEE socket outlet 125 A: None
Number of miniature circuit breakers (MCB): 3
CEE socket outlet 32 A: 1x32A5p400V
Power supply/connection possibility: 1 cable (branch line)
Housing material: Plastic
Depth: 163 mm
Colour: Grey
Handling: Wall mounting
Earth leakage switch: Earth leakage switch with IFN 30 mA (standard)
Height: 343 mm

ETIM Classification – Version 9.0
