004482078
Obsolete

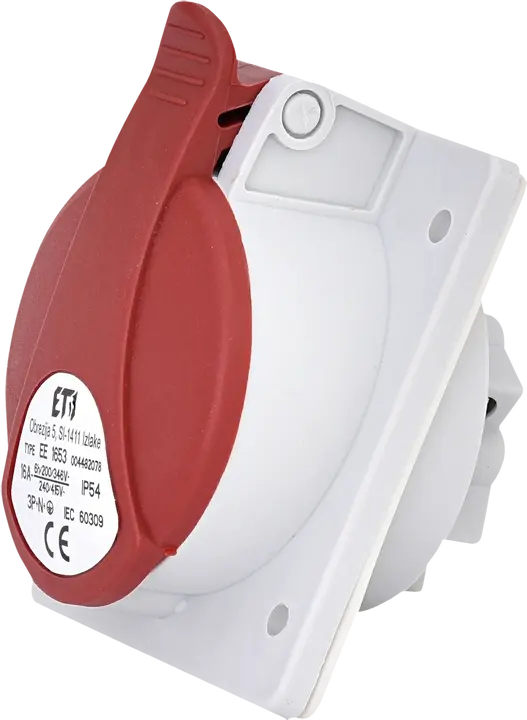

*EE 1653 CEE Socket
- ETI Code:
- 004482078
- Function:
- Built-in wall socket IP54
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Catalogue Group:
- Sockets IP44
- Rated current:
- 16 A
- Type: socket/plug:
- Built-in wall socket
- Number of poles:
- 3+N+PE
- IP rating:
- IP54
5 Documents
18 Logistics
Product
- Net weight of the product
- 0.136 kg
- Net width
- 75 mm
- Net height
- 96.3 mm
- Net depth
- 65.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895674696
- Basic packaging weight
- 0.14 kg
- Basic packaging volume
- 0.79 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895674702
- Transport packaging weight
- 1.68 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 240 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 9.504 dm³
- Pallet quantity
- 900 pcs
- Customs tariff
- 85366990
9 ETIM
- Degree of protection (IP)
- IP54
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Number of poles
- 5
- IEC-amperage
- 16 A
- Insert direction
- Straight
- Clock hour position
- 6 h
- Connection system
- Screwed terminal
- Identification colour
- Red
- Material
- Plastic
ETIM Classification – Version 9.0
