004482110

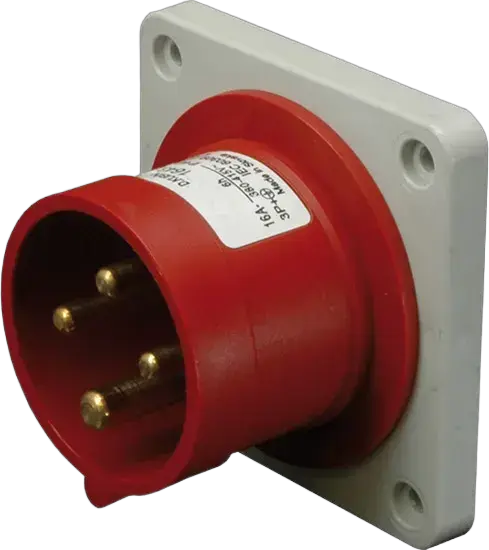

* ERR 1643 CEE Socket
- ETI Code:
- 004482110
- Function:
- Built-in appliance inlet IP44, STRAIGHT
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Catalogue Group:
- Plugs IP44
- Rated current:
- 16 A
- Type: socket/plug:
- Built-in wall plug
- Number of poles:
- 3+PE
- IP rating:
- IP44
4 Documents
15 Logistics
Product
- Net weight of the product
- 0.113 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895675334
- Basic packaging weight
- 0.11 kg
- Basic packaging volume
- 0.52 dm³
Transport Packaging
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838895675341
- Transport packaging weight
- 0.702 kg
- Transport Packaging Dimensions Height
- 150 mm
- Transport Packaging Dimensions Width
- 260 mm
- Transport Packaging Dimensions Depth
- 80 mm
- Transport packaging volume
- 3.12 dm³
- Pallet quantity
- 1,920 pcs
- Customs tariff
- 85366990
10 ETIM
- Degree of protection (IP)
- IP44
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Construction type
- Built-up device plug
- Number of poles
- 4
- IEC-amperage
- 16 A
- Insert direction
- Straight
- Clock hour position
- 6 h
- Connection system
- Screwed terminal
- Identification colour
- Red
- Material
- Plastic
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
17 Tags
004482110CEE SocketERR 1643ETICEEIndustrial plug-in equipmentIP44 seriesIP44 seriesBuilt-in appliance inlets IP44, STRAIGHTBuilt-in appliance inlets IP44, STRAIGHTInternationalIndustrial plugs, sockets and industrial distribution boxes ETICEEIP44, IP54-seriesType: socket/plug: Built-in wall plugNumber of poles: 3+PEIP rating: IP44Rated current: 16 A/16 ACEE Socket Type: socket/plug: Built-in wall plug Rated current: 16 A/16 A Type: socket/plug: Built-in wall plug Number of poles: 3+PE IP rating: IP44 IP rating: IP44
