Push-in spring clamp terminal blocks - Products & Solutions

ESH-EFB.1/10/R

Class name: Connecting bridge
Color: Red

ESH-EFS400GR

Class name: Separating module
Type description: ESH Push-in Spring disconector
Level: Single
Color: Grey
Rated cross section: 4
Rated impulse withstand voltage Uimp: 4
Max current with rated cross-section: 26
Connectable conductor cross section solid-core: 2-6
Cross connection: 1
End section needed: 1

ESH-EFS200GR

Class name: Separating module
Type description: ESH Push-in Spring disconector
Level: Single
Color: Grey
Rated cross section: 2.5
Rated impulse withstand voltage Uimp: 5
Max current with rated cross-section: 13
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1

ESH-EFCE.1

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Green, Yellow
Rated cross section: 1.5
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 225
Cross connection: 1
End section needed: 1

ESH-EFCE.2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 2
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1

ESH-EFCE.2/2+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 2
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1

ESH-EFCE.4

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 4
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-6
Cross connection: 1
End section needed: 1

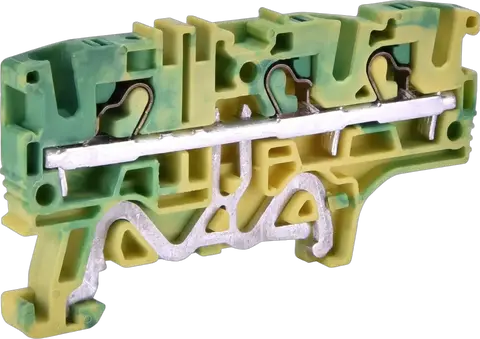

ESH-EFCE.4/1+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 4
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-6
Cross connection: 1
End section needed: 1

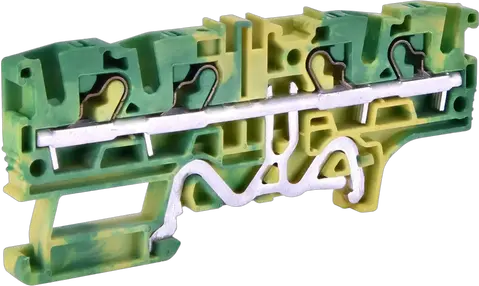

ESH-EFCE.4/2+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 4
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-6
Cross connection: 1
End section needed: 1

ESH-EFCE.2/1+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 2
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1

ESH-EFCE1/2+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Green, Yellow
Rated cross section: 1.5
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 225
Cross connection: 1
End section needed: 1

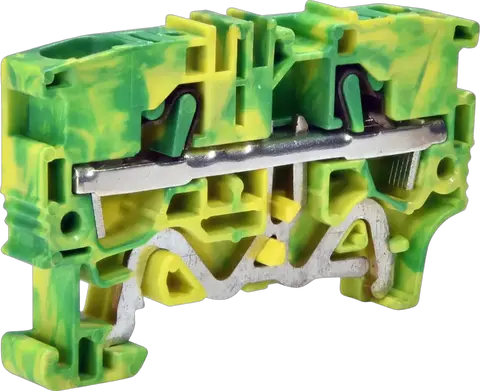

ESH-EFCE.6

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Green, Yellow
Rated cross section: 6
Rated impulse withstand voltage Uimp: 8
Connectable conductor cross section solid-core: 210
Cross connection: 1
End section needed: 1

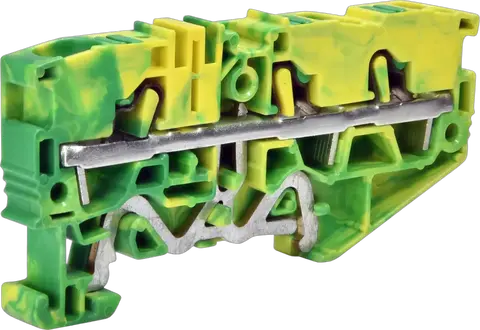

ESH-EFCE.6/1+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 6
Rated impulse withstand voltage Uimp: 8
Connectable conductor cross section solid-core: 2-10
Cross connection: 1
End section needed: 1

ESH-EFCE1/1+2

Class name: Earthing connections
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Yellow, Green
Rated cross section: 1.5
Rated impulse withstand voltage Uimp: 6
Connectable conductor cross section solid-core: 225
Cross connection: 1
End section needed: 1

ESH-EFC.1/2+2PTB

Class name: End cover
Color: Blue

ESH-EFC.1/1+2/B

Class name: Neutral terminal
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 1.5
Rated impulse withstand voltage Uimp: 6
Max current with rated cross-section: 175
Connectable conductor cross section solid-core: 225
Cross connection: 1
End section needed: 1

ESH-EFC.6B

Class name: Neutral terminal
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 6
Rated impulse withstand voltage Uimp: 8
Max current with rated cross-section: 41
Connectable conductor cross section solid-core: 210
Cross connection: 1
End section needed: 1

ESH-EFC.4/2+2B

Class name: Neutral terminal
Type description: ESH Push-in Spring Clamp Terminal Blocks
Level: Single
Color: Blue
Rated cross section: 4
Rated impulse withstand voltage Uimp: 6
Max current with rated cross-section: 32
Connectable conductor cross section solid-core: 2-6
Cross connection: 1
End section needed: 1

ESH-EFC.2B

Class name: Neutral terminal
Type description: ESH Push-in Spring Clamp Terminal Block
Level: Single
Color: Blue
Rated cross section: 2.5
Rated impulse withstand voltage Uimp: 6
Max current with rated cross-section: 24
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1

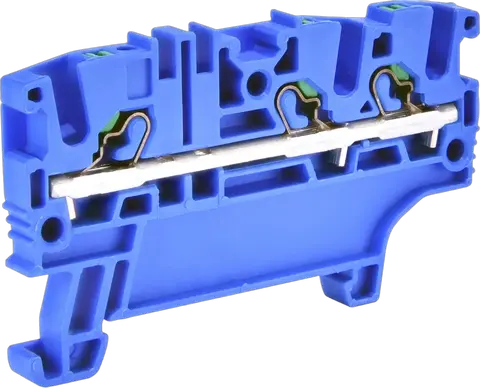

ESH-EFC.2/1+2B

Class name: Neutral terminal
Type description: ESH Push-in Spring Clamp Terminal Block
Level: Single
Color: Blue
Rated cross section: 2.5
Rated impulse withstand voltage Uimp: 6
Max current with rated cross-section: 24
Connectable conductor cross section solid-core: 2-4
Cross connection: 1
End section needed: 1
