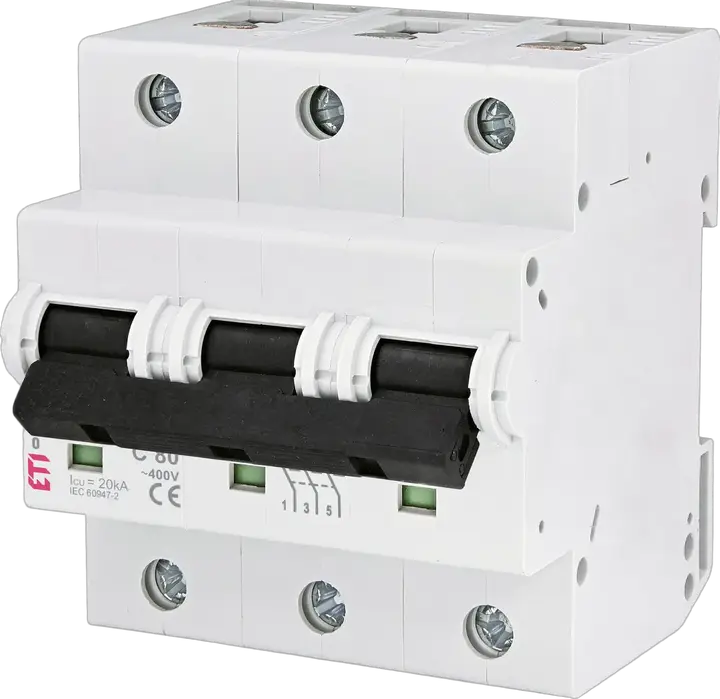

ETIMAT 10 3p C80 Miniature circuit breaker
- ETI Code:
- 002135731
- Depth:
- 75 mm
- Catalogue Group:
- ETIMAT 10 80-125A
- Application:
- IEC/EN 60898-1, IEC 60947-2
- IP rating:
- IP20
- Rated current:
- 80 A
- Tripping characteristic:
- C
- Number of poles:
- 3
- Short circuit capacity:
- 20 kA
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp:
- 4 kV
- Rated AC voltage:
- 415 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 2.5-50 mm²
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
5 Documents
21 Logistics
Product
- Net weight of the product
- 0.691 kg
- Net width
- 81 mm
- Net height
- 90.8 mm
- Net depth
- 78.64 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895328315
- Basic packaging weight
- 0.785 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.22 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 18 pcs
- EAN code for a transport packaging
- 3838895328322
- Transport packaging weight
- 14.48 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,170 pcs
- Customs tariff
- 85362090
25 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 440 V
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 20 kA
- Built-in depth
- 75 mm
- Voltage type
- Other
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 20 kA
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Over voltage category
- 3
- Number of poles (total)
- 3
- Pollution degree
- 3
- Number of protected poles
- 3
- Rated voltage
- 415 V
- Current limiting class
- 3
- Rated current
- 80 A
- Width in number of modular spacings
- 4.5
- Frequency(Min)
- 50 Hz
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 2.5 mm²
- Connectable conductor cross section multi-wired(Min)
- 2.5 mm²
- Connectable conductor cross section solid-core(Max)
- 50 mm²
- Connectable conductor cross section multi-wired(Max)
- 50 mm²
- Frequency(Max)
- 60
- Ambient temperature during operating(Max)
- 55 °C
