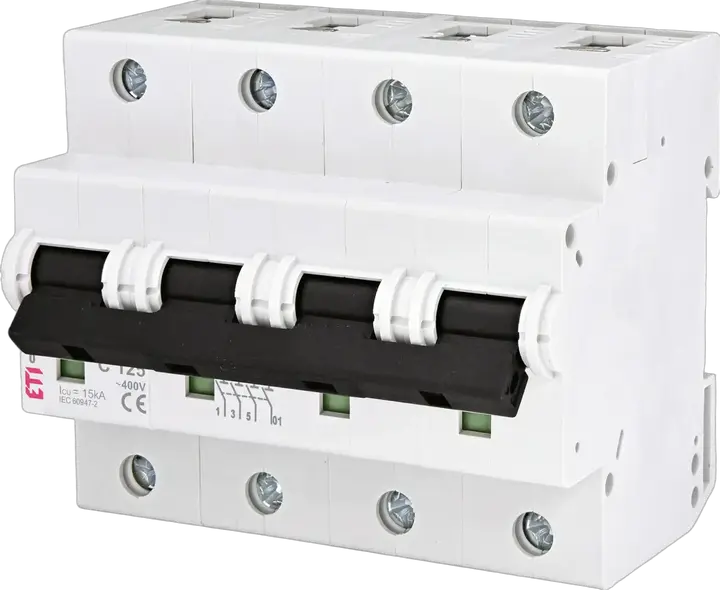

ETIMAT 10 3p+N C125 Miniature circuit breaker
- ETI Code:
- 002136733
- Depth:
- 75 mm
- Catalogue Group:
- ETIMAT 10 80-125A
- Application:
- IEC/EN 60947-2
- IP rating:
- IP20
- Rated current:
- 125 A
- Tripping characteristic:
- C
- Number of poles:
- 3+N
- Short circuit capacity:
- 15 kA
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp:
- 4 kV
- Rated AC voltage:
- 415 V
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 2.5-50 mm²
- Standards:
- IEC/EN 60947-2
- Function:
- MCB
5 Documents
21 Logistics
Product
- Net weight of the product
- 0.983 kg
- Net width
- 108 mm
- Net height
- 90.8 mm
- Net depth
- 76.58 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895328438
- Basic packaging weight
- 1.023 kg
- Basic Packaging Dimensions Height
- 0.084 m
- Basic Packaging Dimensions Width
- 0.093 m
- Basic Packaging Dimensions Depth
- 0.145 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895328445
- Transport packaging weight
- 14.672 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 728 pcs
- Customs tariff
- 85362090
26 ETIM
- Additional equipment possible
- Yes
- Rated insulation voltage Ui
- 440 V
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 15 kA
- Built-in depth
- 75 mm
- Voltage type
- AC/DC
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 15 kA
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Over voltage category
- 3
- Number of poles (total)
- 4
- Pollution degree
- 3
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 3
- Rated voltage
- 415 V
- Current limiting class
- 3
- Rated current
- 125 A
- Width in number of modular spacings
- 6
- Frequency(Min)
- 50 Hz
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 2.5 mm²
- Connectable conductor cross section multi-wired(Min)
- 2.5 mm²
- Connectable conductor cross section solid-core(Max)
- 50 mm²
- Connectable conductor cross section multi-wired(Max)
- 50 mm²
- Frequency(Max)
- 60
- Ambient temperature during operating(Max)
- 55 °C
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
002136733Miniature circuit breakerETIMAT 10 3p+N C125ASTIMCBE 10Normal3p + NCInternationalModular current and residual protective devices ASTIMiniature circuit breakers MCB and accessories ETIMATMiniature circuit breakers MCBRated impulse withstand voltage Uimp: 4 kVVoltage type: ACTripping characteristic: CFunction: MCBNumber of poles: 3+NShort circuit capacity: 15 kA/15 kARated cross section: 2.5 mm²-50 mm²Rated AC voltage: 415 V/415 VStandards: IEC/EN 60947-2Rated current: 125 A/125 ARated Frequency: 50 Hz/60 HzMiniature circuit breaker ETIMAT Rated current: 125 A/125 A Tripping characteristic: C Number of poles: 3+N Short circuit capacity: 15 kA/15 kA Voltage type: AC Rated cross section: 2.5 mm²-50 mm² Function: MCB

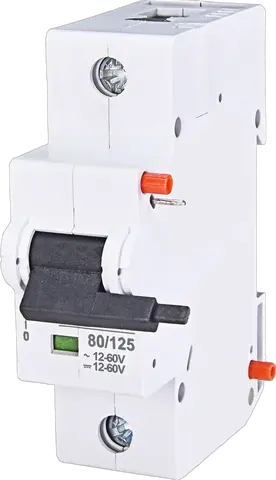

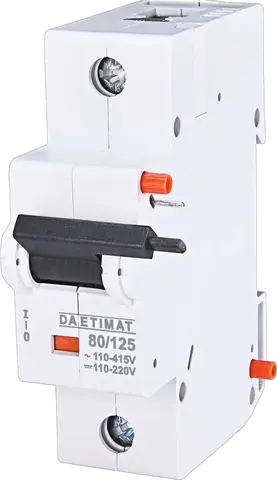

Accessories 3 All Accessories
