004600060

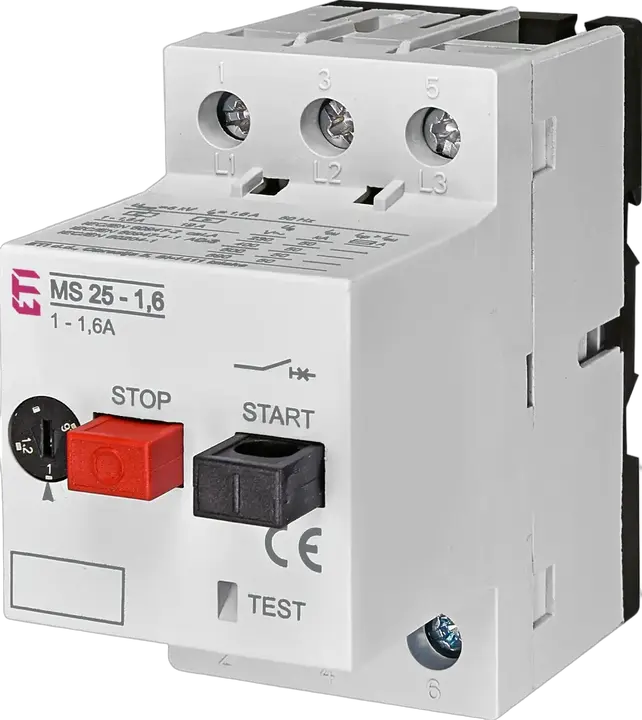

MS25-1,6 Mot.protec.circuit breaker
- ETI Code:
- 004600060
- Setting overl release Ir:
- 1/1.6 A
- Rated operational voltage (AC):
- 690 V
- Current setting range:
- 1/1.6 A
- Short-circuit release Irm:
- 23 A
- Rated operation power at AC3:
- 0.37/0.55 kW
- Catalogue Group:
- MS
- Max. rated operational voltage (AC):
- 690 V
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.255 kg
- Net width
- 44.7 mm
- Net height
- 83.5 mm
- Net depth
- 86.82 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895576297
- Basic packaging weight
- 0.255 kg
- Basic packaging volume
- 1 dm³
Transport Packaging
- Transport packaging quantity
- 50 pcs
- EAN code for a transport packaging
- 3838895576303
- Transport packaging weight
- 12.75 kg
- Transport packaging volume
- 50 dm³
- Pallet quantity
- 1,800 pcs
- Customs tariff
- 85365019
19 ETIM
- Rated operation power at AC-3, 230 V
- 0.25 kW
- With thermal overload protection
- Yes
- Width
- 45 mm
- Rated permanent current Iu
- 1.6 A
- Rated short-circuit breaking capacity lcu at 400 V, AC
- 50 kA
- Degree of protection (IP)
- IP20
- Type of control element
- Push button
- Type of electrical connection of main circuit
- Screw connection
- Phase failure sensitive
- Yes
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-3, 400 V
- 0.55 kW
- Depth
- 83 mm
- Switch off technique
- Thermomagnetic
- Height
- 80 mm
- Overload release current setting(Min)
- 1 A
- Rated operating voltage(Min)
- 230 V
- Rated operating voltage(Max)
- 440 V
- Overload release current setting(Max)
- 1.6 A
ETIM Classification – Version 9.0
