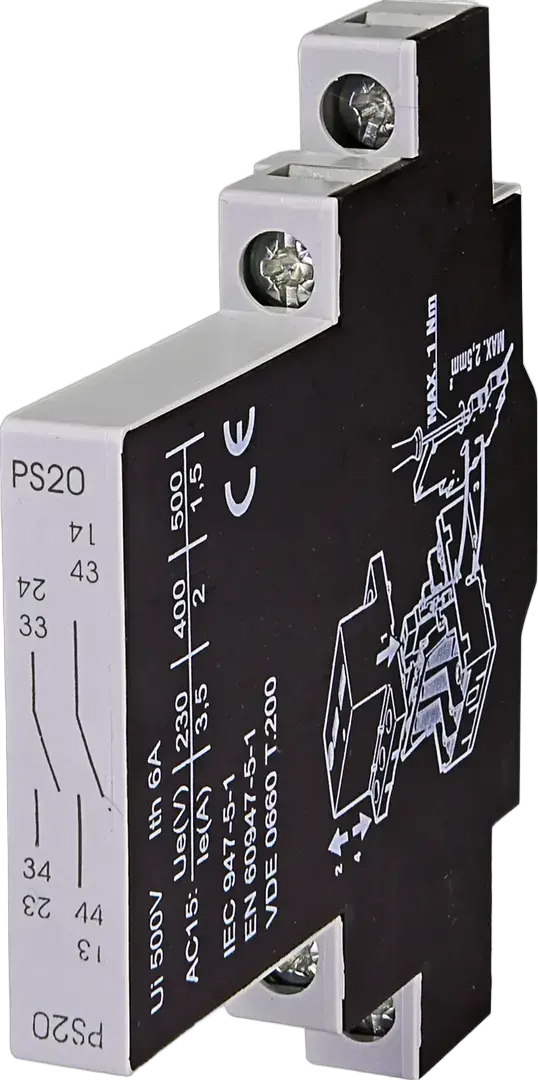

004600160
PS20 Aux.contacts
- ETI Code:
- 004600160
- Catalogue Group:
- Accessories MS
- Function accessories:
- Auxiliary switch for lateral mounting PS
- To use with:
- MS 25, MST25
5 Documents
15 Logistics
Product
- Net weight of the product
- 3 g
- Net width
- 13 mm
- Net height
- 79.9 mm
- Net depth
- 77 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895576693
- Basic packaging weight
- 0.04 kg
- Basic packaging volume
- 0.082 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895576709
- Transport packaging weight
- 0.4 kg
- Transport packaging volume
- 0.82 dm³
- Pallet quantity
- 15,000 pcs
- Customs tariff
- 85389099
9 ETIM
- Model
- Clip-on
- Mounting method
- Side mounting
- Device fitting
- Other
- Rated switch current
- 6 A
- Rated operation current Ie at AC-15, 230 V
- 3.5 A
- Number of contacts as normally open contact
- 2
- Function
- Auxiliary switch
- Type of electric connection
- Screw connection
- Width in number of modular spacings
- 0.5
ETIM Classification – Version 9.0
