004646629

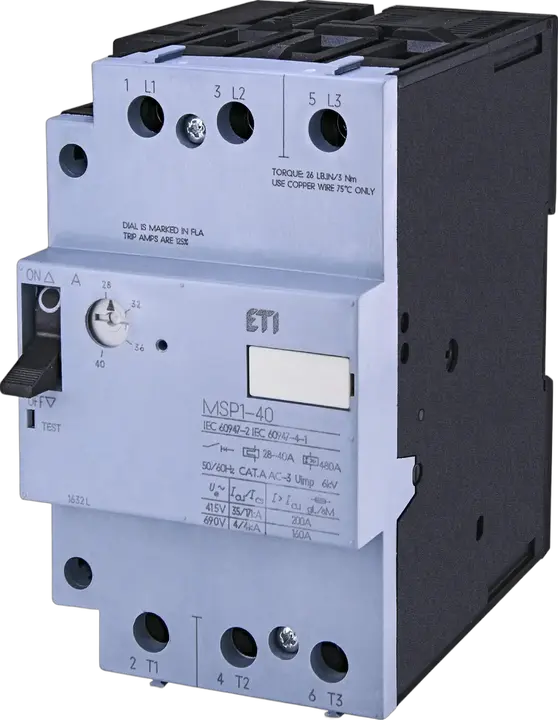

MSP1-40 Mot.protec.circuit breaker
- ETI Code:
- 004646629
- Setting overl release Ir:
- 28/40 A
- Rated operational voltage (AC):
- 690 V
- Current setting range:
- 28/40 A
- Short-circuit release Irm:
- 480 A
- Catalogue Group:
- MSP
- Max. rated operational voltage (AC):
- 690 V
21 Logistics
Product
- Net weight of the product
- 0.76 kg
- Net width
- 70 mm
- Net height
- 119.6 mm
- Net depth
- 102.28 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895750383
- Basic packaging weight
- 0.76 kg
- Basic Packaging Dimensions Height
- 162 mm
- Basic Packaging Dimensions Width
- 75 mm
- Basic Packaging Dimensions Depth
- 120 mm
- Basic packaging volume
- 1.458 dm³
Transport Packaging
- Transport packaging quantity
- 18 pcs
- EAN code for a transport packaging
- 3838895750390
- Transport packaging weight
- 15.68 kg
- Transport Packaging Dimensions Height
- 230 mm
- Transport Packaging Dimensions Width
- 410 mm
- Transport Packaging Dimensions Depth
- 520 mm
- Transport packaging volume
- 49.036 dm³
- Pallet quantity
- 360 pcs
- Customs tariff
- 85362010
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
18 Tags
004646629Mot.protec.circuit breakerMSP1-40ETICONMotor protective circuit breakerMSPMSPMSPMSPInternationalModular current and residual protective devices ASTIMotor protective circuit breaker and accessories ETICONMotor Protective circuit breakerShort-circuit release Irm: 480 ACurrent setting range: 28 A/40 AMax. rated operational voltage (AC): 690 VCatalogue Group: MSPMot.protec.circuit breaker Current setting range: 28 A/40 A Short-circuit release Irm: 480 A
