004661400
CLBS 16 3P Switch disconnector
- ETI Code:
- 004661400
- Rated current:
- 16 A
- Catalogue Group:
- Compact load break switch CLBS
- Type of Installation:
- TH 35
- Type description:
- DIN-rail mounted
- Function:
- 0-1
- Number of poles:
- 3
- Thermal current Ith:
- 16 A
- Rated operational current Ie AC-21 A/B at 415V:
- 16 A
- Rated Insulation Voltage:
- 800 V
- Max. rated operational voltage (AC):
- 690 V
21 Logistics
Product
- Net weight of the product
- 0.23 kg
- Net width
- 45 mm
- Net height
- 85 mm
- Net depth
- 65.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895717911
- Basic packaging weight
- 0.23 kg
- Basic Packaging Dimensions Height
- 85 mm
- Basic Packaging Dimensions Width
- 111 mm
- Basic Packaging Dimensions Depth
- 65 mm
- Basic packaging volume
- 0.613 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895717928
- Transport packaging weight
- 5.52 kg
- Transport Packaging Dimensions Height
- 275 mm
- Transport Packaging Dimensions Width
- 345 mm
- Transport Packaging Dimensions Depth
- 177 mm
- Transport packaging volume
- 16.793 dm³
- Pallet quantity
- 1,680 pcs
- Customs tariff
- 85365080
14 ETIM
- Version as emergency stop installation
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 16 A
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 7.5 kW
- Suitable for intermediate mounting
- Yes
- Suitable for distribution board installation
- Yes
- Version as main switch
- Yes
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
19 Tags
004661400Switch disconnectorCLBS 16 3PETISWITCHCompact Load Break SwitchCLBSCLBS body(no handle included) 3 POLES 16 - 125 ACLBS body(no handle included) 3 POLES 16 - 125 ACLBS body(no handle included) 3 POLES 16 - 125 AInternationalModular, toggle and rotary switches ETISWITCHRotary switches CLBS 16-125ARated operational current Ie AC-21 A/B at 415V: 16 A/16 AMax. rated operational voltage (AC): 690 VThermal current Ith: 16 AFunction: 0-1Number of poles: 3Rated Insulation Voltage: 800 VSwitch disconnector Function: 0-1 Number of poles: 3 Thermal current Ith: 16 A Rated operational current Ie AC-21 A/B at 415V: 16 A/16 A
Video
Accessories 15 All Accessories
Similar Products 11 All Products
004661401
CLBS 25 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 25 A
- Rated operational current Ie AC-21 A/B at 415V
- 25 A
004661402
CLBS 40 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 40 A
- Rated operational current Ie AC-21 A/B at 415V
- 40 A
004661403
CLBS 63 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 63 A
- Rated operational current Ie AC-21 A/B at 415V
- 63 A
004661404
CLBS 80 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 80 A
- Rated operational current Ie AC-21 A/B at 415V
- 80 A

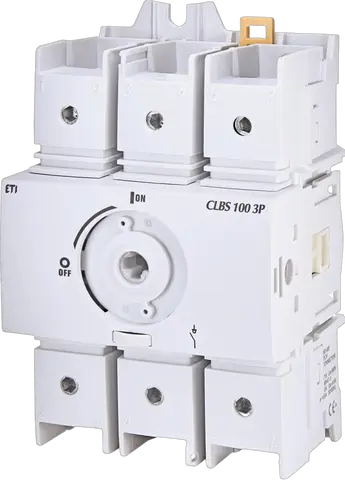

004661405
CLBS 100 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 100 A
- Rated operational current Ie AC-21 A/B at 415V
- 100 A

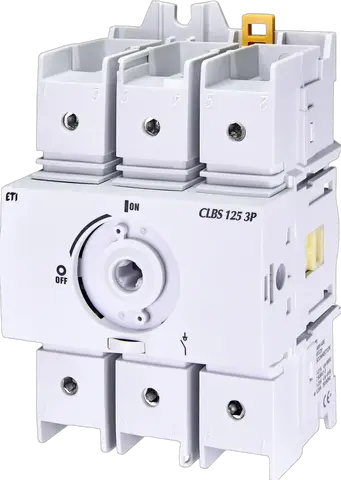

004661406
CLBS 125 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 125 A
- Rated operational current Ie AC-21 A/B at 415V
- 125 A
004661910
CLBSCD 63 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- Rated operational current Ie AC-21 A/B at 415V
004661911
CLBSCD 100 3P
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- Rated operational current Ie AC-21 A/B at 415V
004664250
ModLBS 16 1p
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 1
- Thermal current Ith
- 16 A
- Rated operational current Ie AC-21 A/B at 415V
- 16 A
004664251
ModLBS 16 3p
- Class name
- Switch disconnector
- Function
- 0-1
- Number of poles
- 3
- Thermal current Ith
- 16 A
- Rated operational current Ie AC-21 A/B at 415V
- 16 A

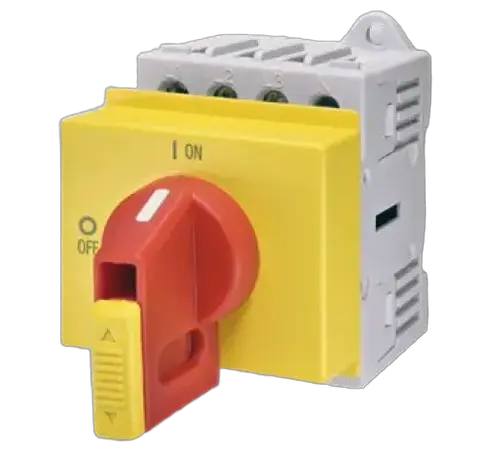

004664252
