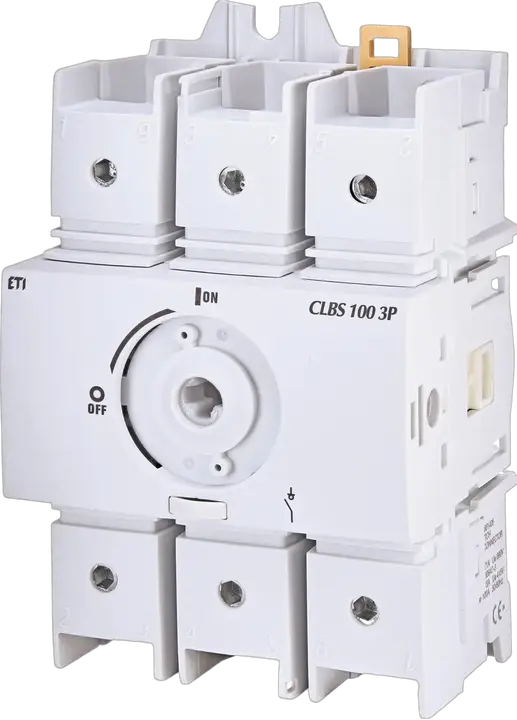

CLBS 100 3P Switch disconnector
- ETI Code:
- 004661405
- Rated current:
- 100 A
- Catalogue Group:
- Compact load break switch CLBS
- Type of Installation:
- TH 35
- Type description:
- DIN-rail mounted
- Function:
- 0-1
- Number of poles:
- 3
- Thermal current Ith:
- 100 A
- Rated operational current Ie AC-21 A/B at 415V:
- 100 A
- Rated Insulation Voltage:
- 800 V
- Max. rated operational voltage (AC):
- 690 V
21 Logistics
Product
- Net weight of the product
- 0.6 kg
- Net width
- 79.6 mm
- Net height
- 142.8 mm
- Net depth
- 65.37 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895718017
- Basic packaging weight
- 0.6 kg
- Basic Packaging Dimensions Height
- 88 mm
- Basic Packaging Dimensions Width
- 160 mm
- Basic Packaging Dimensions Depth
- 88 mm
- Basic packaging volume
- 1.239 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895718024
- Transport packaging weight
- 7.2 kg
- Transport Packaging Dimensions Height
- 275 mm
- Transport Packaging Dimensions Width
- 345 mm
- Transport Packaging Dimensions Depth
- 177 mm
- Transport packaging volume
- 16.793 dm³
- Pallet quantity
- 840 pcs
- Customs tariff
- 85365080
14 ETIM
- Version as emergency stop installation
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 100 A
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 45 kW
- Suitable for intermediate mounting
- Yes
- Suitable for distribution board installation
- Yes
- Version as main switch
- Yes
ETIM Classification – Version 9.0
