004673065

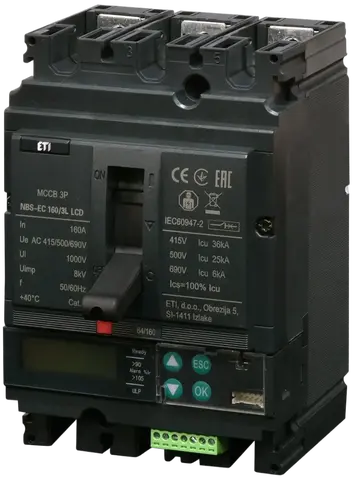

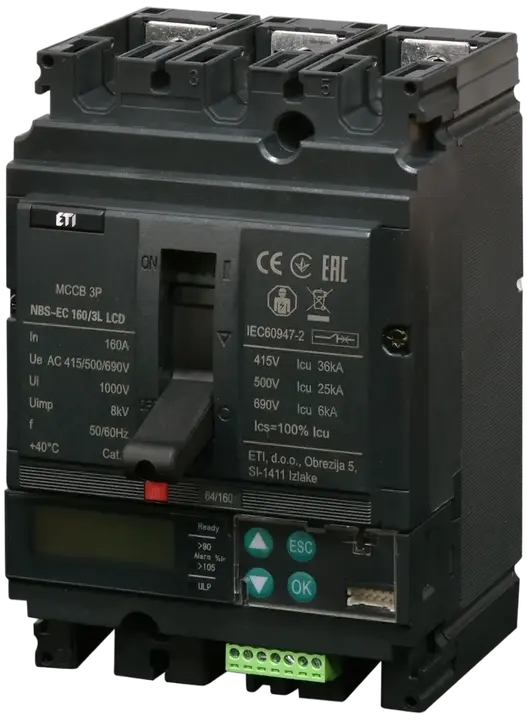

NBS-EC 160/3L LCD 160A 3P Molded Case Circuit Breaker
- ETI Code:
- 004673065
- Application:
- 60947
- Rated current:
- 160 A
- Number of poles:
- 3
- Connection type:
- front connection
- Rated impulse withstand voltage Uimp:
- 8 kV
- Rated short-circuit breaking capacity at 415V Icu/Ics:
- 36 kA
- Rated operational voltage (AC):
- 690 V
- Rated Insulation Voltage:
- 1,000 V
- Thermal Adjustment:
- (0,4-1) x In
- Magnetic adjustment:
- (1,5-12) x Ir
- Adjustable or fixed:
- adjustable
- Standards:
- 60947
- Function:
- MCCB
- Catalogue Group:
- NBS
21 Logistics
Product
- Net weight of the product
- 1.5 kg
- Net width
- 105 mm
- Net height
- 157 mm
- Net depth
- 106.55 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895940142
- Basic packaging weight
- 1.89 kg
- Basic Packaging Dimensions Height
- 136 mm
- Basic Packaging Dimensions Width
- 116 mm
- Basic Packaging Dimensions Depth
- 183 mm
- Basic packaging volume
- 2.887 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895940159
- Transport packaging weight
- 23.8 kg
- Transport Packaging Dimensions Height
- 370 mm
- Transport Packaging Dimensions Width
- 240 mm
- Transport Packaging Dimensions Depth
- 420 mm
- Transport packaging volume
- 37.296 dm³
- Pallet quantity
- 312 pcs
- Customs tariff
- 85362090
18 ETIM
- Motor drive optional
- Yes
- Complete device with protection unit
- Yes
- Rated permanent current Iu
- 160 A
- Degree of protection (IP)
- IP20
- Type of control element
- Toggle
- Position of connection for main current circuit
- Front side
- Integrated earth fault protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 3
- Device construction
- Complete device in housing
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 36 kA
- With switched-off indicator
- Yes
- Overload release current setting(Min)
- 64 A
- Adjustment range short-term delayed short-circuit release(Min)
- 60 A
- Rated voltage(Min)
- 415 V
- Rated voltage(Max)
- 690 V
- Adjustment range short-term delayed short-circuit release(Max)
- 1,200 A
- Overload release current setting(Max)
- 160 A
ETIM Classification – Version 9.0
