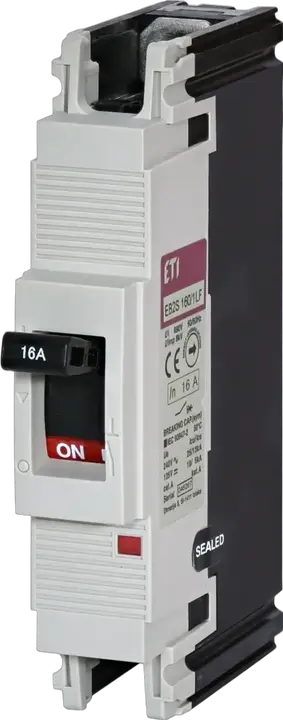

EB2S 160/1LF 16A 1p Molded Case Circuit Breaker
- ETI Code:
- 004671001
- Application:
- 60947-2
- Function:
- MCCB
- Rated current:
- 16 A
- Number of poles:
- 1
- Connection type:
- FRONT
- Standards:
- 60947-2
- Rated impulse withstand voltage Uimp:
- 6 kV
- Rated operational voltage (AC):
- 230 V
- Rated Insulation Voltage:
- 800 V
- Thermal Adjustment:
- no
- Magnetic adjustment:
- no
- Adjustable or fixed:
- fixed
3 Documents
11 Logistics
Product
- Net weight of the product
- 0.4 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895409342
- Transport packaging weight
- 0.5 kg
- Transport Packaging Dimensions Height
- 110 mm
- Transport Packaging Dimensions Width
- 40 mm
- Transport Packaging Dimensions Depth
- 170 mm
- Transport packaging volume
- 0.748 dm³
- Pallet quantity
- 1,336 pcs
- Customs tariff
- 85362010
10 ETIM
- Complete device with protection unit
- Yes
- Rated permanent current Iu
- 16 A
- Degree of protection (IP)
- IP20
- Type of control element
- Toggle
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 1
- Device construction
- Complete device in housing
- Rated voltage(Min)
- 230 V
- Rated voltage(Max)
- 230 V
ETIM Classification – Version 9.0
2 Diagrams
24 Tags
004671001Molded Case Circuit BreakerEB2S 160/1LF 16A 1pETIBREAKMCCB low breaking capacityEB2SEB2S 160FixedL -economicInternationalMoulded case circuit breakers and disconnectors ETIBREAKLow breaking capacity MCCBRated impulse withstand voltage Uimp: 6 kVConnection type: FRONTRated operational voltage (AC): 230 VFunction: MCCBNumber of poles: 1Rated Insulation Voltage: 800 VAdjustable or fixed: fixedMagnetic adjustment: noStandards: 60947-2Thermal Adjustment: noRated current: 16 A/16 AMolded Case Circuit Breaker Function: MCCB Rated current: 16 A/16 A Number of poles: 1 Adjustable or fixed: fixed
