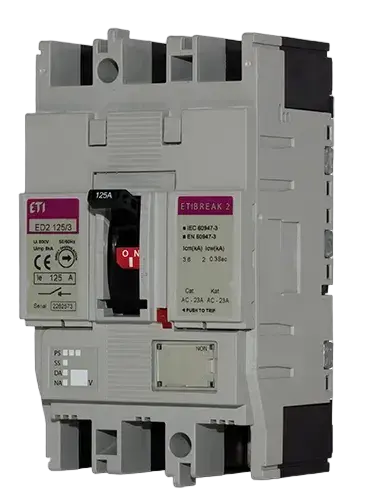

ED2 1250/3 Switch disconnector
- ETI Code:
- 004672371
- Application:
- IEC 60947-3
- Rated current:
- 1250 A
- Number of poles:
- 3
- Connection type:
- extension bars
- Standards:
- IEC 60947-3
- Rated impulse withstand voltage Uimp:
- 8 kV
- Utilization category:
- AC-23A, DC-22A
- Rated short-circuit making capacity Icm:
- 32 kA
- Rated short-time withstand current Icw at 0,3s:
- 15 kA
- Rated operational voltage (AC):
- 690 V
- Rated operational voltage (DC):
- 250 V
- Rated Insulation Voltage:
- 800 V
- Function:
- Low voltage switch disconnector
- Frame Size:
- 1250A
- Short circuit capacity:
- 32 kA
5 Documents
14 Logistics
Product
- Net weight of the product
- 20 kg
- Net width
- 210 mm
- Net height
- 530 mm
- Net depth
- 170.56 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895665564
- Transport packaging weight
- 20 kg
- Transport Packaging Dimensions Height
- 330 mm
- Transport Packaging Dimensions Width
- 600 mm
- Transport Packaging Dimensions Depth
- 280 mm
- Transport packaging volume
- 55.44 dm³
- Pallet quantity
- 32 pcs
- Customs tariff
- 85362090
13 ETIM
- Motor drive optional
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 1,250 A
- Type of control element
- Rocker lever
- Conditioned rated short-circuit current Iq
- 100 kA
- Type of electrical connection of main circuit
- Rail connection
- Degree of protection (IP), front side
- IP20
- Voltage release optional
- Yes
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Version as main switch
- Yes
