004645130

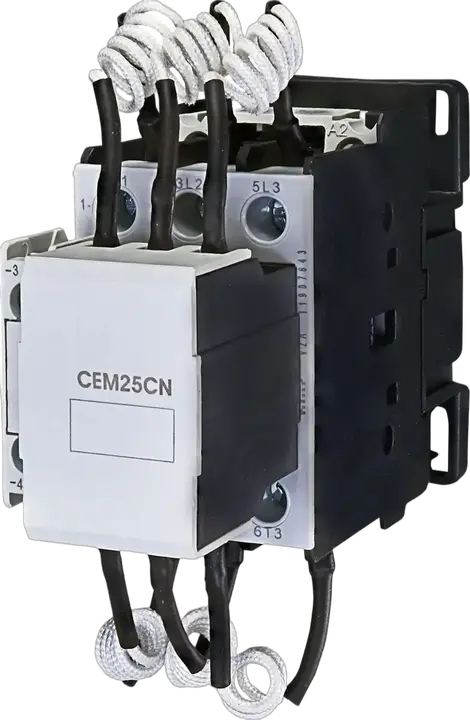

CEM25CN.10-230V-50Hz Capacitive duty contactor
- ETI Code:
- 004645130
- Function:
- Capacitor duty contactor CEM_CN
- Reactive power:
- 20 kVAr
- Catalogue Group:
- CEM CN
- No. of aux NO contacts:
- 1
- Rated oper. Power 400V:
- 20 kVAr
5 Documents
14 Logistics
Product
- Net weight of the product
- 0.619 kg
- Net width
- 46.4 mm
- Net height
- 113.1 mm
- Net depth
- 128.9 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7909018129211
- Transport packaging weight
- 0.43 kg
- Transport Packaging Dimensions Height
- 60 mm
- Transport Packaging Dimensions Width
- 168 mm
- Transport Packaging Dimensions Depth
- 143 mm
- Transport packaging volume
- 1.441 dm³
- Pallet quantity
- 1,865 pcs
- Customs tariff
- 85364900
7 ETIM
- Voltage type for actuating
- AC
- Type of electrical connection of main circuit
- Screw connection
- Rated blind power at 400 V, 50 Hz
- 20 kVAr
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
ETIM Classification – Version 9.0
