004649140

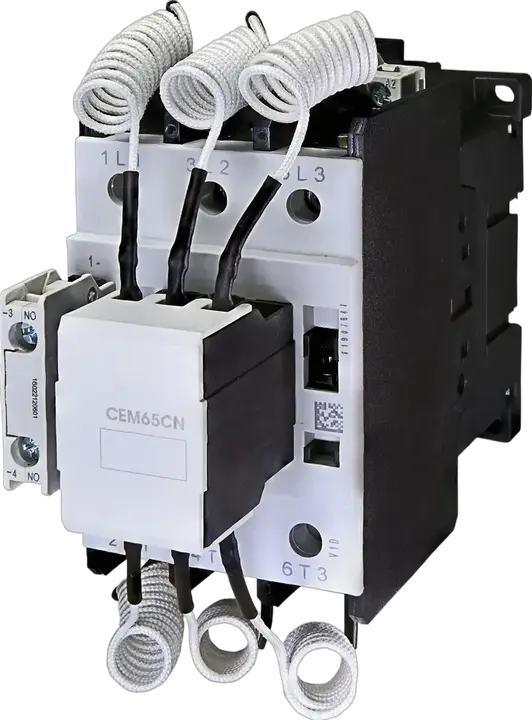

CEM65CN.10-230V-50Hz Capacitive duty contactor
- ETI Code:
- 004649140
- Function:
- Capacitor duty contactor CEM_CN
- Reactive power:
- 50 kVAr
- Rated operation current Ie at AC1:
- 110 A
- Rated operation current Ie at AC3, 400V:
- 65 A
- Number of poles:
- 3
- Catalogue Group:
- CEM CN
- No. of aux NO contacts:
- 1
- Rated oper. Power 400V:
- 50 kVAr
5 Documents
21 Logistics
Product
- Net weight of the product
- 1.4 kg
- Net width
- 69.7 mm
- Net height
- 185.3 mm
- Net depth
- 157.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909018128221
- Basic packaging weight
- 1.32 kg
- Basic Packaging Dimensions Height
- 85 mm
- Basic Packaging Dimensions Width
- 170 mm
- Basic Packaging Dimensions Depth
- 215 mm
- Basic packaging volume
- 3.107 dm³
Transport Packaging
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 17909018128228
- Transport packaging weight
- 8.349 kg
- Transport Packaging Dimensions Height
- 368 mm
- Transport Packaging Dimensions Width
- 263 mm
- Transport Packaging Dimensions Depth
- 220 mm
- Transport packaging volume
- 21.292 dm³
- Pallet quantity
- 276 pcs
- Customs tariff
- 85364900
9 ETIM
- Voltage type for actuating
- AC
- Type of electrical connection of main circuit
- Screw connection
- Rated blind power at 400 V, 50 Hz
- 50 kVAr
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
ETIM Classification – Version 9.0
