002921279

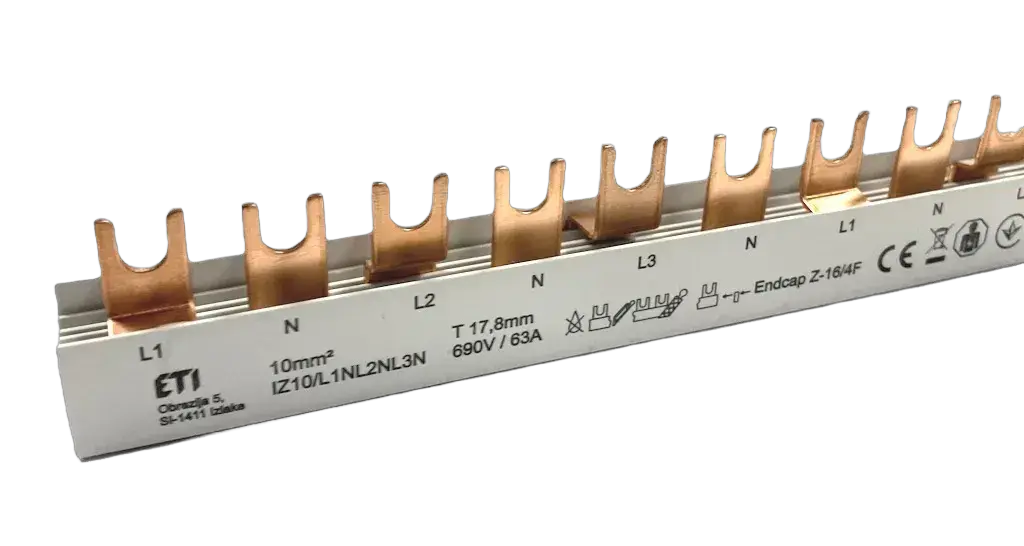

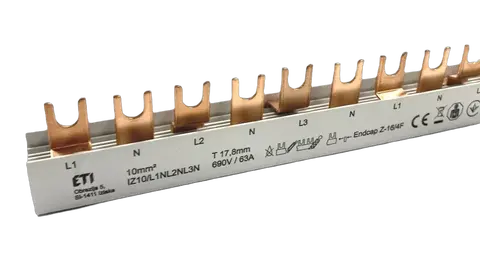

IZ10/L1NL2NL3N/54 Cu rail
- ETI Code:
- 002921279
- To use with:
- ETIMAT 1P+N
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork type
- Number of poles:
- 3+N
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 63 A
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x54
- No. Of Phases:
- 3
- Voltage type:
- AC/DC
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Cu rail
5 Documents
15 Logistics
Product
- EAN code for a single product
- 3838895880226
- Net weight of the product
- 0.536 kg
- Net width
- 965 mm
- Net height
- 31 mm
- Net depth
- 19.78 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895863564
- Transport packaging weight
- 5.41 kg
- Transport Packaging Dimensions Height
- 1,070 mm
- Transport Packaging Dimensions Width
- 80 mm
- Transport Packaging Dimensions Depth
- 80 mm
- Transport packaging volume
- 6.848 dm³
- Pallet quantity
- 400 pcs
- Customs tariff
- 85369095
13 ETIM
- Can be cut to size
- Yes
- Cross section
- 10 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 3
- Rated permanent current Iu
- 63 A
- Suitable for number of devices
- 27
- Module width
- 18 mm
- Number of poles
- 4
- Max. rated operation voltage Ue
- 690 V
- Insulated
- Yes
- Colour
- Grey
- Type of electric connection
- Fork
- Width in number of modular spacings
- 54
ETIM Classification – Version 9.0
