002440761

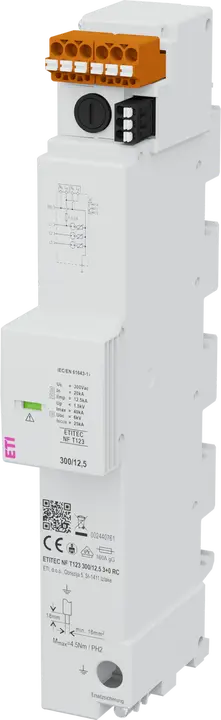

ETITEC NF T123 300/12,5 3+0 RC Surge arrester
- ETI Code:
- 002440761
- Function:
- SPD
- Surge arrester type:
- T1, T2, T3
- Uc Continous Operating Voltage AC:
- 300 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Max. Discharge current Imax, 8/20:
- 40 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- Yes
- Leakage Current:
- No
- Network system:
- TN-C
- Number of modules:
- 3
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC N(F) T123
21 Logistics
Product
- Net weight of the product
- 0.641 kg
- Net width
- 36 mm
- Net height
- 237.6 mm
- Net depth
- 101.51 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895994145
- Basic packaging weight
- 0.705 kg
- Basic Packaging Dimensions Height
- 110 mm
- Basic Packaging Dimensions Width
- 45 mm
- Basic Packaging Dimensions Depth
- 260 mm
- Basic packaging volume
- 1.287 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895994152
- Transport packaging weight
- 18.615 kg
- Transport Packaging Dimensions Height
- 363 mm
- Transport Packaging Dimensions Width
- 253 mm
- Transport Packaging Dimensions Depth
- 382 mm
- Transport packaging volume
- 35.082 dm³
- Pallet quantity
- 432 pcs
- Customs tariff
- 85363090
12 ETIM
- System configuration TN-C
- Yes
- Remote signalling
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Mounting method
- Busbar
- Construction size
- Other
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Voltage protection level
- 1.5 kV
- Number of poles
- 3
- Integrated backup fuse
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 300 V
ETIM Classification – Version 9.0
