002440653

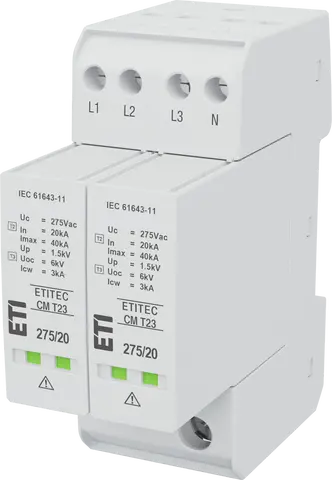

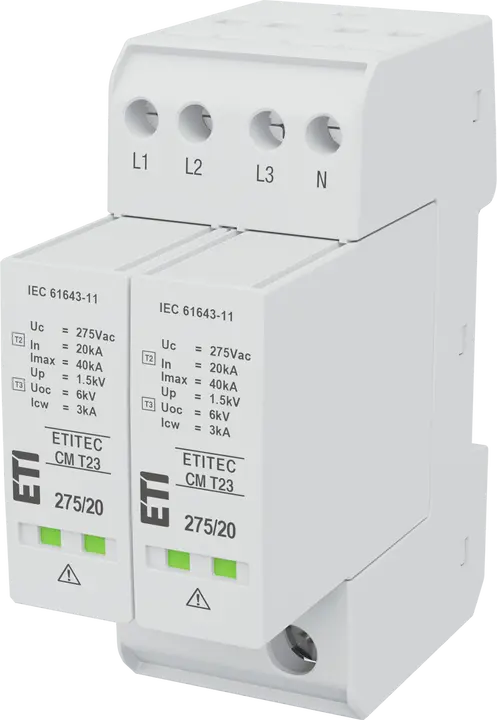

ETITEC CM T23 275/20 4+0 RC Surge arrester
- ETI Code:
- 002440653
- Function:
- SPD
- Surge arrester type:
- T2, T3
- Uc Continous Operating Voltage AC:
- 275 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- Yes
- Leakage Current:
- Yes
- Network system:
- TN-S
- Number of modules:
- 4
- Installation:
- Home and residental building protection
- Built-in depth:
- 70 mm
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC CM
21 Logistics
Product
- Net weight of the product
- 0.691 kg
- Net width
- 36 mm
- Net height
- 98.9 mm
- Net depth
- 77.15 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895918417
- Basic packaging weight
- 0.298 kg
- Basic Packaging Dimensions Height
- 83 mm
- Basic Packaging Dimensions Width
- 44 mm
- Basic Packaging Dimensions Depth
- 118 mm
- Basic packaging volume
- 0.431 dm³
Transport Packaging
- Transport packaging quantity
- 8 pcs
- EAN code for a transport packaging
- 3838895918424
- Transport packaging weight
- 2.465 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 1,808 pcs
- Customs tariff
- 85363090
16 ETIM
- Max. conductor cross section flexible (fine-strand)
- 6 mm²
- Max. discharge surge current (8/20)
- 40 kA
- Number of conductors (without earthing)
- 4
- Nominal voltage AC
- 230 V
- Max. conductor cross section solid (solid, stranded)
- 10 mm²
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Short-circuit breaking capacity (Isccr)
- 25 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- Signalling at the device
- Optical
- Category type 2
- Yes
- Max. continuous voltage AC
- 275 V
- With remote signalling contact
- Yes
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
