002440313
Obsolete

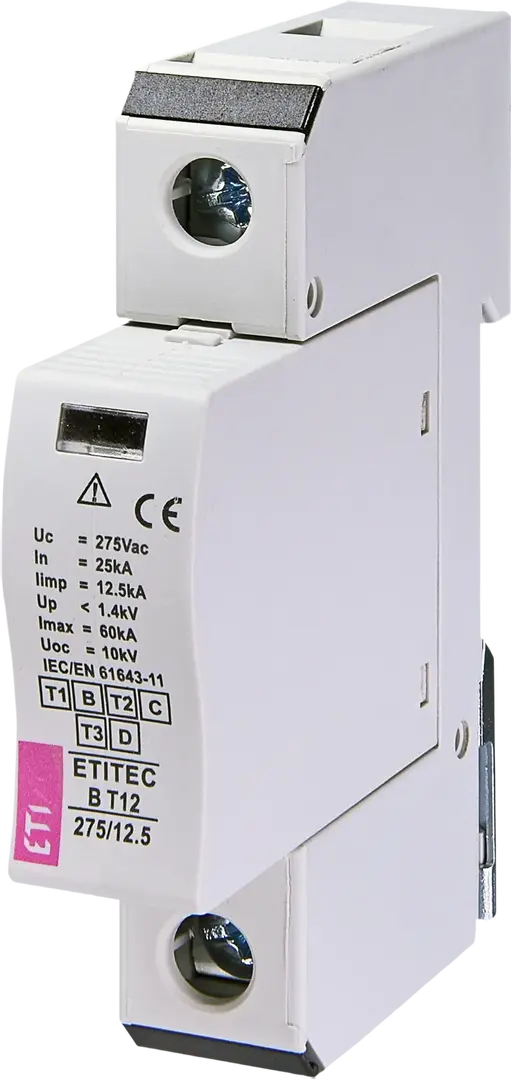

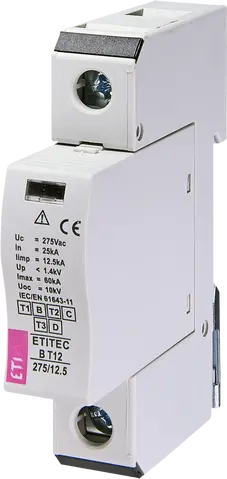

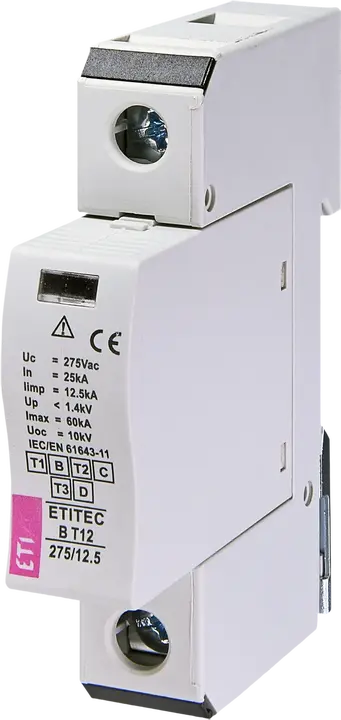

*ETITEC B T12 275/12,5 1+0 Surge arrester
- ETI Code:
- 002440313
- Function:
- SPD
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage AC:
- 275 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 25 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Network system:
- TN
- Number of modules:
- 1
- Installation:
- Home and residental building protection
- Built-in depth:
- 645 mm
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC B
21 Logistics
Product
- Net weight of the product
- 150 g
- Net width
- 17.8 mm
- Net height
- 93.9 mm
- Net depth
- 74.15 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895766766
- Basic packaging weight
- 0.165 kg
- Basic Packaging Dimensions Height
- 74 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 109 mm
- Basic packaging volume
- 0.194 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895766773
- Transport packaging weight
- 2.178 kg
- Transport Packaging Dimensions Height
- 298 mm
- Transport Packaging Dimensions Width
- 112 mm
- Transport Packaging Dimensions Depth
- 79 mm
- Transport packaging volume
- 2.637 dm³
- Pallet quantity
- 3,300 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- Yes
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Nominal voltage AC
- 230 V
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Lightning impulse current (10/350 µs)
- 12.5 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 1
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 275 V
ETIM Classification – Version 9.0
