002440724

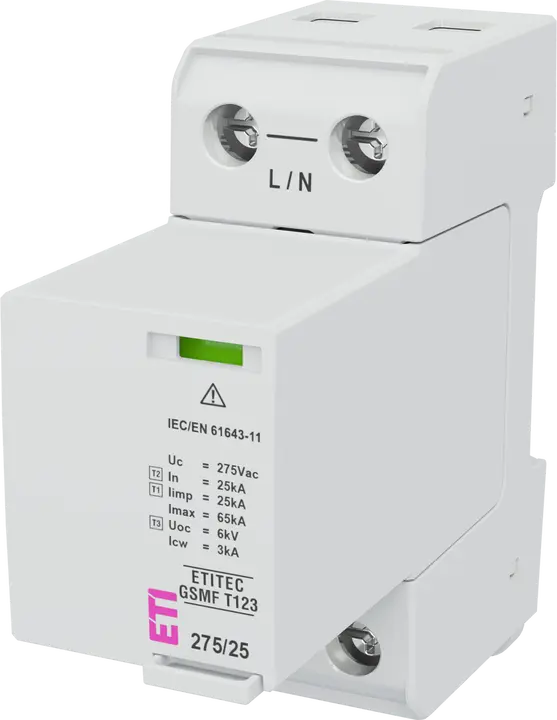

ETITEC GSMF T123 275/25 1+0 RC Surge arrester
- ETI Code:
- 002440724
- Function:
- SPD
- Surge arrester type:
- T1, T2, T3
- Uc Continous Operating Voltage AC:
- 275 V
- Iimp(10/350) Impulse Current:
- 25 kA
- Nominal Discharge Current (8/20 μs) In:
- 25 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Remote signalisation:
- Yes
- Leakage Current:
- No
- Network system:
- TN
- Number of modules:
- 1
- Installation:
- Home and residental building protection
- Built-in depth:
- 86 mm
- IP rating:
- IP20
- Applied Technology:
- GDT
- Catalogue Group:
- ETITEC GSMF
4 Documents
18 Logistics
Product
- Net weight of the product
- 0.334 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966050
- Basic packaging weight
- 0.357 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 46 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.516 dm³
Transport Packaging
- Transport packaging quantity
- 7 pcs
- EAN code for a transport packaging
- 3838895966067
- Transport packaging weight
- 2.58 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 1,582 pcs
- Customs tariff
- 85363090
19 ETIM
- System configuration TN-C
- Yes
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Remote signalling
- Yes
- Nominal voltage AC
- 230 V
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Lightning impulse current (10/350 µs)
- 25 kA
- Specific energy (W/R)
- 156.2 kJ/Ohm
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 1
- Integrated backup fuse
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 275 V
- Follow current extinguishing capability
- 75 kA
ETIM Classification – Version 9.0
