002175681
Obsolete

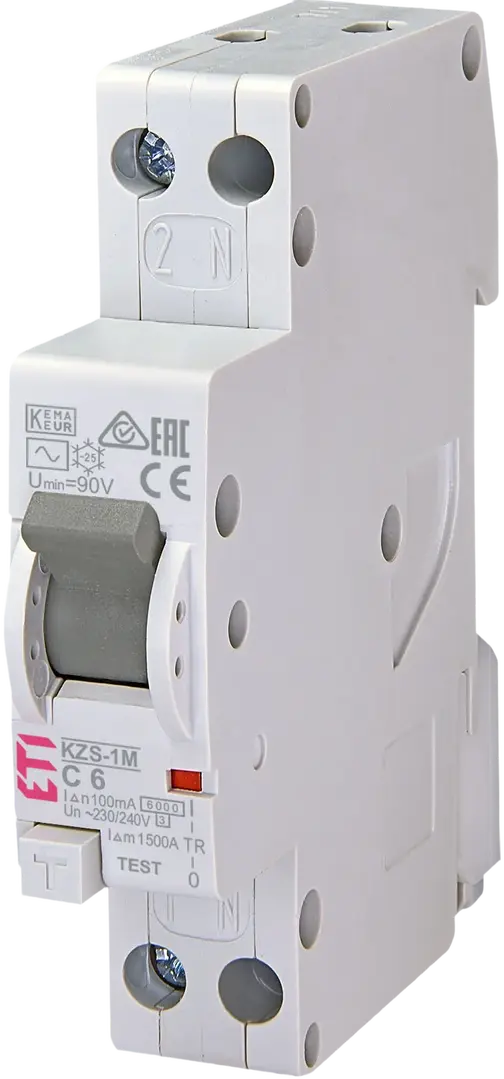

*KZS-1M 1p+N AC C6/0.1 6kA RCBO
- ETI Code:
- 002175681
- Function:
- RCBO
- Rated AC voltage:
- 230 V
- Catalogue Group:
- KZS-1M Residual current circuit breakers with ove
- Fault type signalisation:
- No
- Application:
- IEC 61009
- Connection type:
- Supply from the bottom
- Rated conditional short-circuit current Inc:
- 6 kA
- Rated residual operating current IDn:
- 0.1 A
- Rated current:
- 6 A
- Residual current type:
- AC
- Rated residual current:
- 0.1 A
- Tripping characteristic:
- C
- Number of poles:
- 1+N
- Short circuit capacity:
- 6 kA
- Rated cross section:
- 1-10 mm²
- Standards:
- IEC 61009
22 Logistics
Product
- EAN code for a single product
- 3838895629429
- Net weight of the product
- 0.115 kg
- Net width
- 17.9 mm
- Net height
- 88.2 mm
- Net depth
- 73.97 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 12 pcs
- EAN code for a basic packaging
- 3838895629436
- Basic packaging weight
- 1.388 kg
- Basic Packaging Dimensions Height
- 0.085 m
- Basic Packaging Dimensions Width
- 0.123 m
- Basic Packaging Dimensions Depth
- 0.218 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 72 pcs
- EAN code for a transport packaging
- 3838895740155
- Transport packaging weight
- 8.678 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 3,744 pcs
- Customs tariff
- 85362010
18 ETIM
- Built-in depth
- 69 mm
- Leakage current type
- AC
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Rated fault current
- 0.1 A
- Number of poles (total)
- 2
- Frequency
- 50 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Current limiting class
- 3
- Rated current
- 6 A
- Width in number of modular spacings
- 1
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 10 mm²
- Connectable conductor cross section multi-wired(Max)
- 10 mm²
ETIM Classification – Version 9.0
