002441712

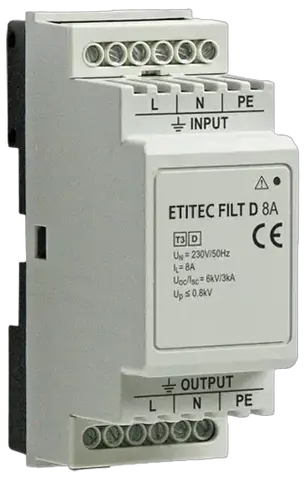

ETITEC FILT D 20/275F 8A G Surge arrester
- ETI Code:
- 002441712
- Function:
- SPD
- Surge arrester type:
- T3
- Uc Continous Operating Voltage AC:
- 275 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Up - Voltage Protection Level:
- 0.8 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Number of modules:
- 1
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC FILT
15 Logistics
Product
- Net weight of the product
- 94 g
- Net width
- 35 mm
- Net height
- 92.2 mm
- Net depth
- 57.99 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895662501
- Basic packaging weight
- 0.94 kg
- Basic packaging volume
- 0.23 dm³
Transport Packaging
- Transport packaging quantity
- 7 pcs
- EAN code for a transport packaging
- 3838895663874
- Transport packaging weight
- 6.58 kg
- Transport packaging volume
- 1.61 dm³
- Pallet quantity
- 854 pcs
- Customs tariff
- 85363090
3 ETIM
- Max. continuous voltage DC
- 245 V
- Mounting method
- DIN rail (top hat rail) 35 mm
- Voltage protection level
- 800 V
ETIM Classification – Version 9.0
