002441713

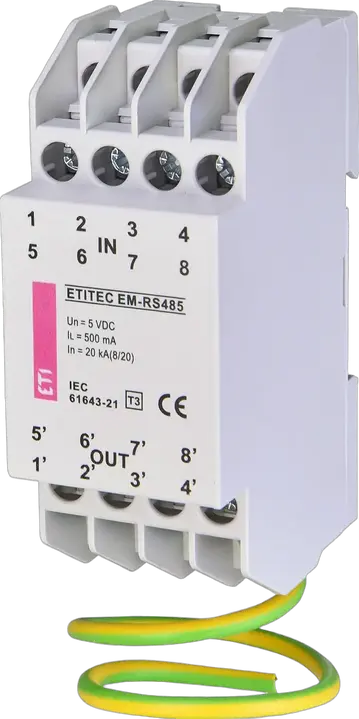

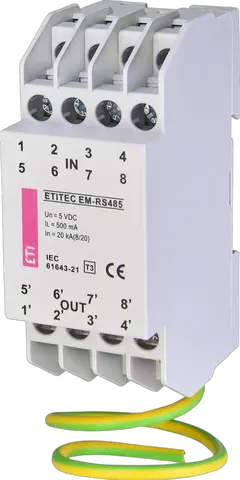

ETITEC EM-RS485 Surge arrester
- ETI Code:
- 002441713
- Function:
- SPD
- Surge arrester type:
- T3
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 5 V
- Up - Voltage Protection Level:
- 0.5 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Applied Technology:
- SC
- Catalogue Group:
- ETITEC EM
12 Logistics
Product
- EAN code for a single product
- 3838400074607
- Net weight of the product
- 110 g
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838895667056
- Transport packaging weight
- 0.684 kg
- Transport Packaging Dimensions Height
- 73.5 mm
- Transport Packaging Dimensions Width
- 38.5 mm
- Transport Packaging Dimensions Depth
- 106 mm
- Transport packaging volume
- 0.3 dm³
- Pallet quantity
- 6,174 pcs
- Customs tariff
- 85363090
3 ETIM
- Mounting method
- DIN rail (top hat rail) 35 mm
- Nominal voltage DC
- 5 V
- Voltage protection level
- 500 V
ETIM Classification – Version 9.0
