002441714

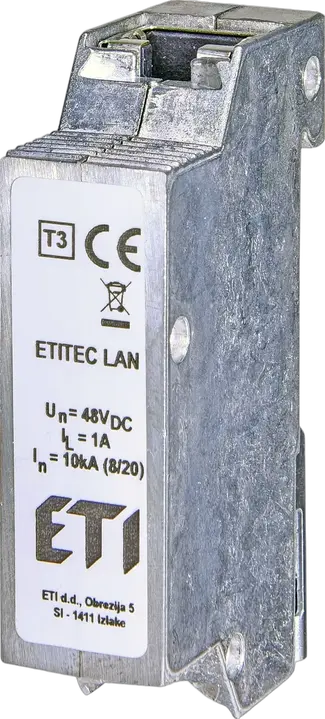

ETITEC LAN Surge arrester
- ETI Code:
- 002441714
- Function:
- SPD
- Surge arrester type:
- T3
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 48 kV
- Up - Voltage Protection Level:
- 0.5 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Applied Technology:
- SC
- Catalogue Group:
- ETITEC LAN
18 Logistics
Product
- Net weight of the product
- 110 g
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895667063
- Basic packaging weight
- 0.124 kg
- Basic Packaging Dimensions Height
- 76.5 mm
- Basic Packaging Dimensions Width
- 41.5 mm
- Basic Packaging Dimensions Depth
- 109 mm
- Basic packaging volume
- 0.346 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895800477
- Transport packaging weight
- 1.32 kg
- Transport Packaging Dimensions Height
- 116 mm
- Transport Packaging Dimensions Width
- 83 mm
- Transport Packaging Dimensions Depth
- 305 mm
- Transport packaging volume
- 3.2 dm³
- Pallet quantity
- 3,744 pcs
- Customs tariff
- 85363090
3 ETIM
- Mounting method
- DIN rail (top hat rail) 35 mm
- Nominal voltage DC
- 48 V
- Voltage protection level
- 500 V
ETIM Classification – Version 9.0
