002440820

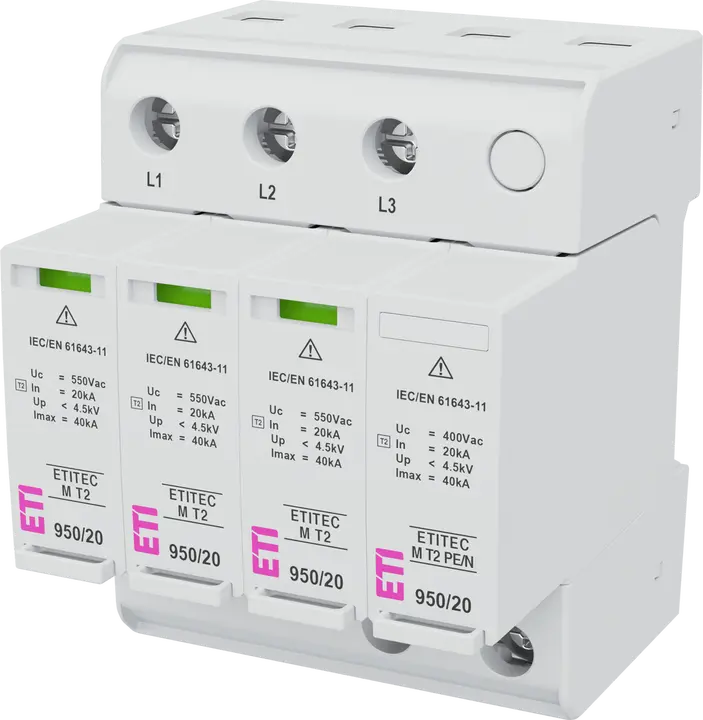

ETITEC M T2 950/20 4Y Surge arrester
- ETI Code:
- 002440820
- Function:
- SPD
- Surge arrester type:
- T2
- Uc Continous Operating Voltage AC:
- 950 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Max. Discharge current Imax, 8/20:
- 40 kA
- Current type:
- AC
- Rated AC voltage:
- 800 V
- Up - Voltage Protection Level:
- 4.5 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Network system:
- IT
- Number of modules:
- 4
- Installation:
- Home and residental building protection
- Built-in depth:
- 70 mm
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC M AC
21 Logistics
Product
- Net weight of the product
- 0.55 kg
- Net width
- 72 mm
- Net height
- 96.2 mm
- Net depth
- 95.63 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895985136
- Basic packaging weight
- 0.799 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 82 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.92 dm³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838895985143
- Transport packaging weight
- 3.277 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 852 pcs
- Customs tariff
- 85363090
15 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 40 kA
- Number of conductors (without earthing)
- 4
- Nominal voltage AC
- 800 V
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Voltage protection level
- 4.5 kV
- Signalling at the device
- Optical
- System configuration IT
- Yes
- Category type 2
- Yes
- Max. continuous voltage AC
- 950 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
2 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
31 Tags
002440820Surge arresterETITEC M T2 950/20 4YGreen protectETITECETITEC M T2 4Y ACETITEC M T2 4Y ACETITEC M T2 4Y ACETITEC M T2 4Y ACInternationalSurge arresters ETITECAC surge arrestersAC PV inverter surge arrestersSurge arrester type: T2Number of modules: 4Up - Voltage Protection Level: 4.5 kVCurrent type: ACInstallation: Home and residental building protectionFunction: SPDIP rating: IP20Uc Continous Operating Voltage AC: 950 VRemote signalisation: FalseRated AC voltage: 800 V/800 VBuilt-in depth: 70 mmApplied Technology: MOVNetwork system: ITMax. Discharge current Imax, 8/20: 40 kA/40 kALeakage Current: TrueNominal Discharge Current (8/20 μs) In: 20 kACatalogue Group: ETITEC M ACSurge arrester TOWAR Surge arrester type: T2 Uc Continous Operating Voltage AC: 950 V Nominal Discharge Current (8/20 μs) In: 20 kA Max. Discharge current Imax, 8/20: 40 kA/40 kA Current type: AC Rated AC voltage: 800 V/800 V Up - Voltage Protection Level: 4.5 kV Remote signalisation: False Leakage Current: True Network system: IT Number of modules: 4 Installation: Home and residental building protection Built-in depth: 70 mm IP rating: IP20 Applied Technology: MOV Catalogue Group: ETITEC M AC
Similar Products 5 All Products
002440810
ETITEC M T12 950/12,5 4Y
- Class name
- Surge arrester
- Function
- SPD
- Surge arrester type
- T1, T2
- Uc Continous Operating Voltage AC
- 950 V
- Iimp(10/350) Impulse Current
- 12.5 kA
002440811

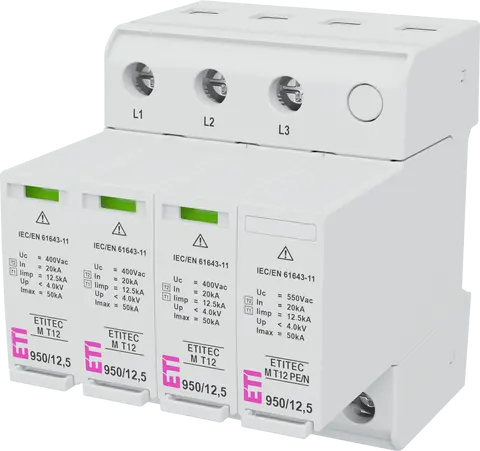

ETITEC M T12 950/12,5 4Y RC
- Class name
- Surge arrester
- Function
- SPD
- Surge arrester type
- T1, T2
- Uc Continous Operating Voltage AC
- 950 V
- Iimp(10/350) Impulse Current
- 12.5 kA
002440821
ETITEC M T2 950/20 4Y RC
- Class name
- Surge arrester
- Function
- SPD
- Surge arrester type
- T2
- Uc Continous Operating Voltage AC
- 950 V
- Iimp(10/350) Impulse Current
002442988

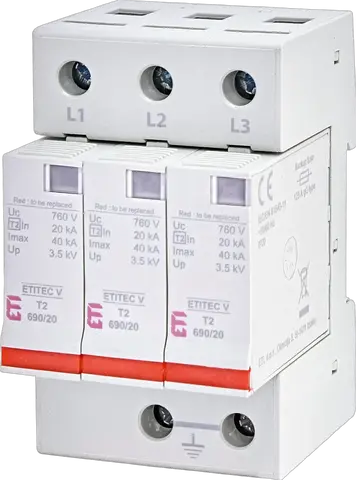

ETITEC V T2 690/20 3+0 RC
- Class name
- Surge arrester
- Function
- SPD
- Surge arrester type
- T2
- Uc Continous Operating Voltage AC
- 690 V
- Iimp(10/350) Impulse Current
002442989

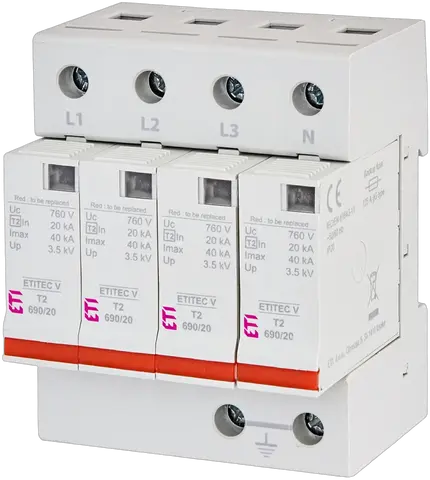

ETITEC V T2 690/20 4+0 RC
