002442988

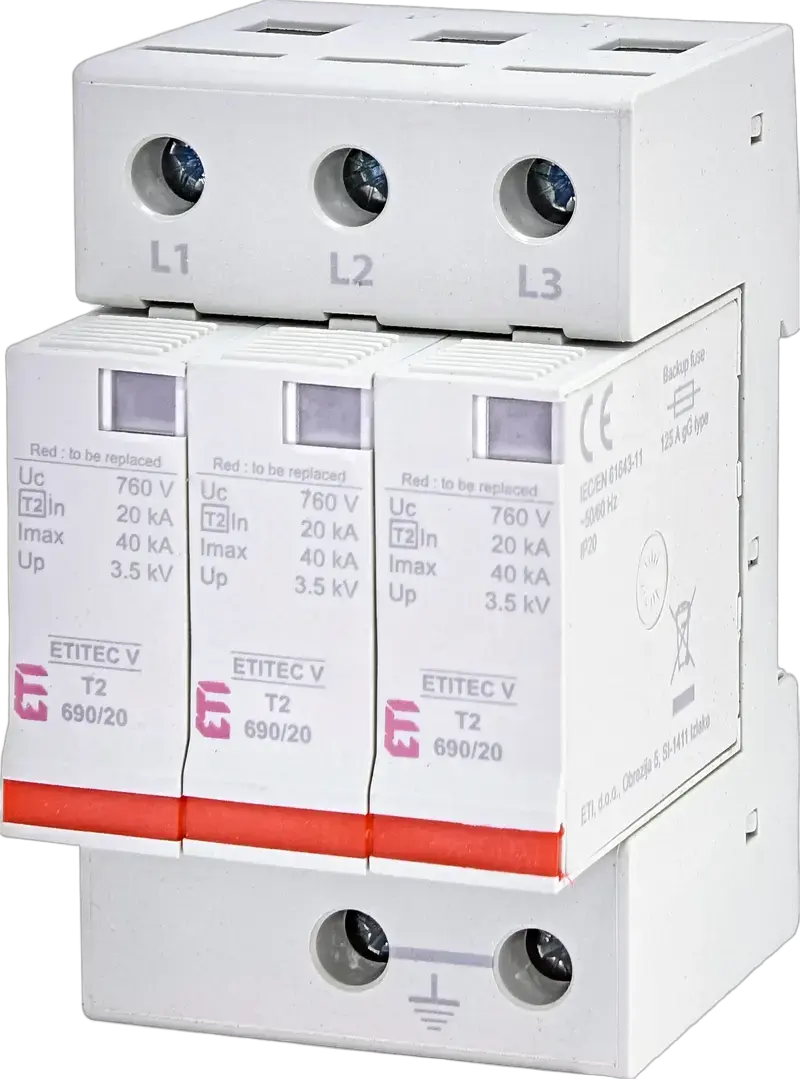

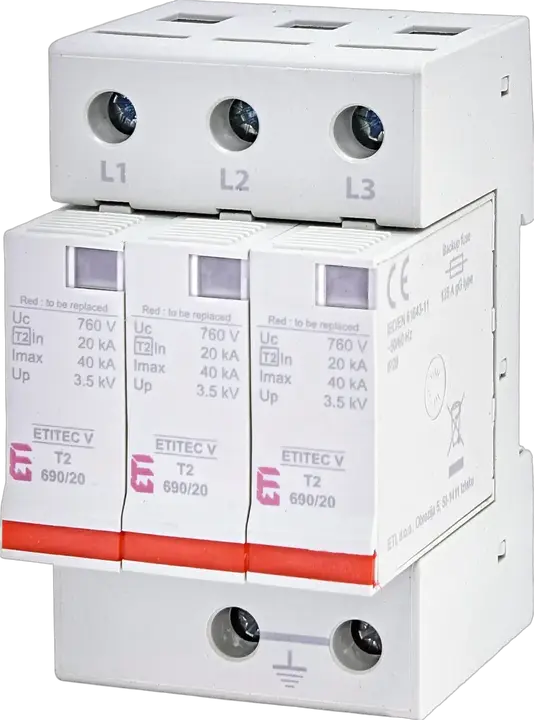

ETITEC V T2 690/20 3+0 RC Surge arrester
- ETI Code:
- 002442988
- Function:
- SPD
- Surge arrester type:
- T2
- Uc Continous Operating Voltage AC:
- 690 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Up - Voltage Protection Level:
- 4 kV
- Remote signalisation:
- Yes
- Leakage Current:
- Yes
- Network system:
- TN-C
- Number of modules:
- 3
- Installation:
- Home and residental building protection
- Built-in depth:
- 67 mm
- IP rating:
- IP20
- Applied Technology:
- MOV
- Catalogue Group:
- ETITEC V
27 Logistics
Product
- Net weight of the product
- 0.319 kg
- Net width
- 54 mm
- Net height
- 99 mm
- Net depth
- 66.9 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895829683
- Basic packaging weight
- 0.339 kg
- Basic Packaging Dimensions Height
- 70 mm
- Basic Packaging Dimensions Width
- 57 mm
- Basic Packaging Dimensions Depth
- 100 mm
- Basic packaging volume
- 0.399 dm³
Transport Packaging
- Intermediate packaging quantity
- 3 pcs
- EAN code for a intermediate packaging
- 3838895859185
- Intermediate packaging weight
- 1.122 kg
- Intermediate Packaging Dimensions Height
- 78 mm
- Intermediate Packaging Dimensions Width
- 105 mm
- Intermediate Packaging Dimensions Depth
- 183 mm
- Transport packaging quantity
- 36 pcs
- EAN code for a transport packaging
- 3838895829690
- Transport packaging weight
- 14.22 kg
- Transport Packaging Dimensions Height
- 290 mm
- Transport Packaging Dimensions Width
- 210 mm
- Transport Packaging Dimensions Depth
- 460 mm
- Transport packaging volume
- 28.014 dm³
- Pallet quantity
- 1,440 pcs
- Customs tariff
- 85363090
