002440414

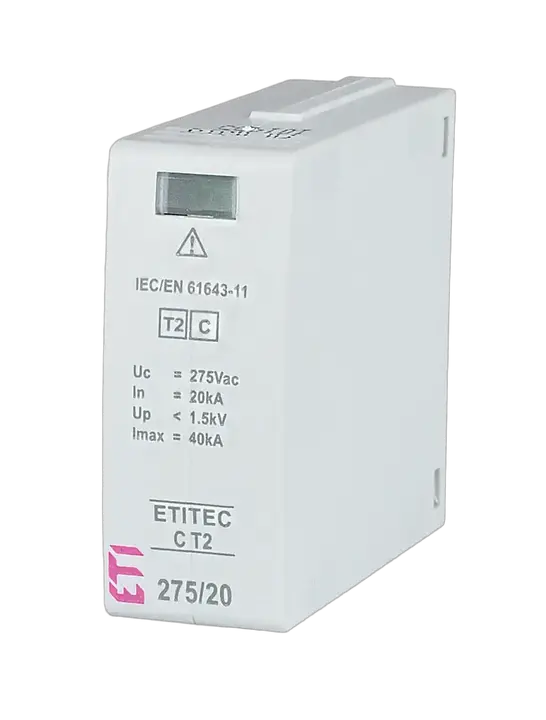

MOD. ETITEC C T2 275/20 Surge arrester
- ETI Code:
- 002440414
- Rated AC voltage:
- 230 V
- Network system:
- TN/TT
- Catalogue Group:
- ETITEC C
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Surge arrester type:
- T2
- Uc Continous Operating Voltage AC:
- 275 V
- Function:
- SPD Module
- To use with:
- ETITEC C T2
- Current type:
- AC
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
15 Logistics
Product
- EAN code for a single product
- 3838895773108
- Net weight of the product
- 0.056 kg
- Net width
- 17.8 mm
- Net height
- 46.6 mm
- Net depth
- 52 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895773115
- Transport packaging weight
- 0.68 kg
- Transport Packaging Dimensions Height
- 77 mm
- Transport Packaging Dimensions Width
- 113 mm
- Transport Packaging Dimensions Depth
- 99 mm
- Transport packaging volume
- 0.861 dm³
- Pallet quantity
- 12,348 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- Yes
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 25 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- System configuration TT
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Max. continuous voltage AC
- 275 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
