002440628
MOD. EM T2 PV 750/20 Surge arrester
- ETI Code:
- 002440628
- Function:
- SPD Module
- Network system:
- PV
- Catalogue Group:
- ETITEC EM PV
- Installation:
- PV protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Surge arrester type:
- T2
- Uc Continous Operating Voltage DC:
- 750 V
- To use with:

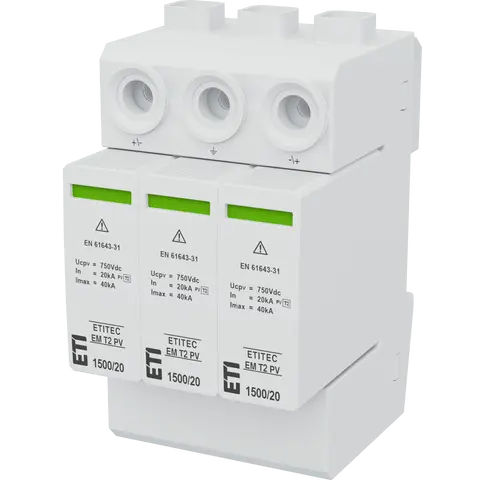

- ETITEC EM T2 PV
- Current type:
- DC
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
21 Logistics
Product
- Net weight of the product
- 0.071 kg
- Net width
- 17.8 mm
- Net height
- 45 mm
- Net depth
- 50.03 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895878100
- Basic packaging weight
- 0.078 kg
- Basic Packaging Dimensions Height
- 72 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895878117
- Transport packaging weight
- 1.017 kg
- Transport Packaging Dimensions Height
- 79 mm
- Transport Packaging Dimensions Width
- 113 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 0.893 dm³
- Pallet quantity
- 8,256 pcs
- Customs tariff
- 85363090
10 ETIM
- Max. discharge surge current (8/20)
- 40 kA
- Max. continuous voltage DC
- 750 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 9 kA
- Signalling at the device
- Optical
- Category type 2
- Yes
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- Yes
ETIM Classification – Version 9.0
