002440731

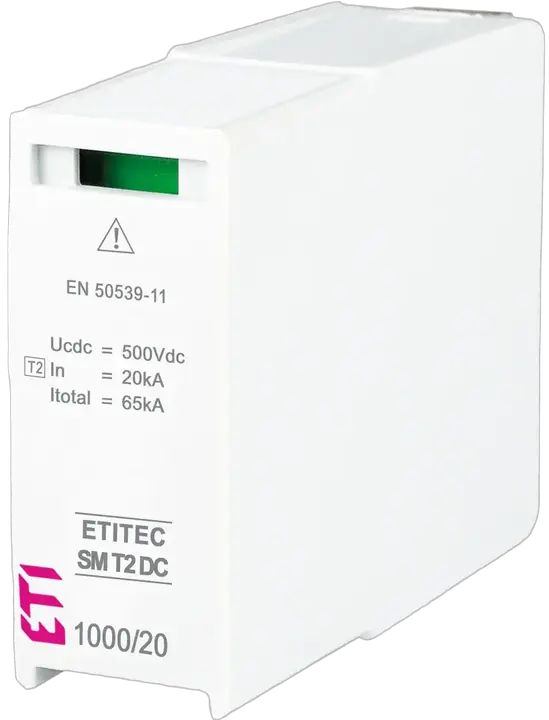

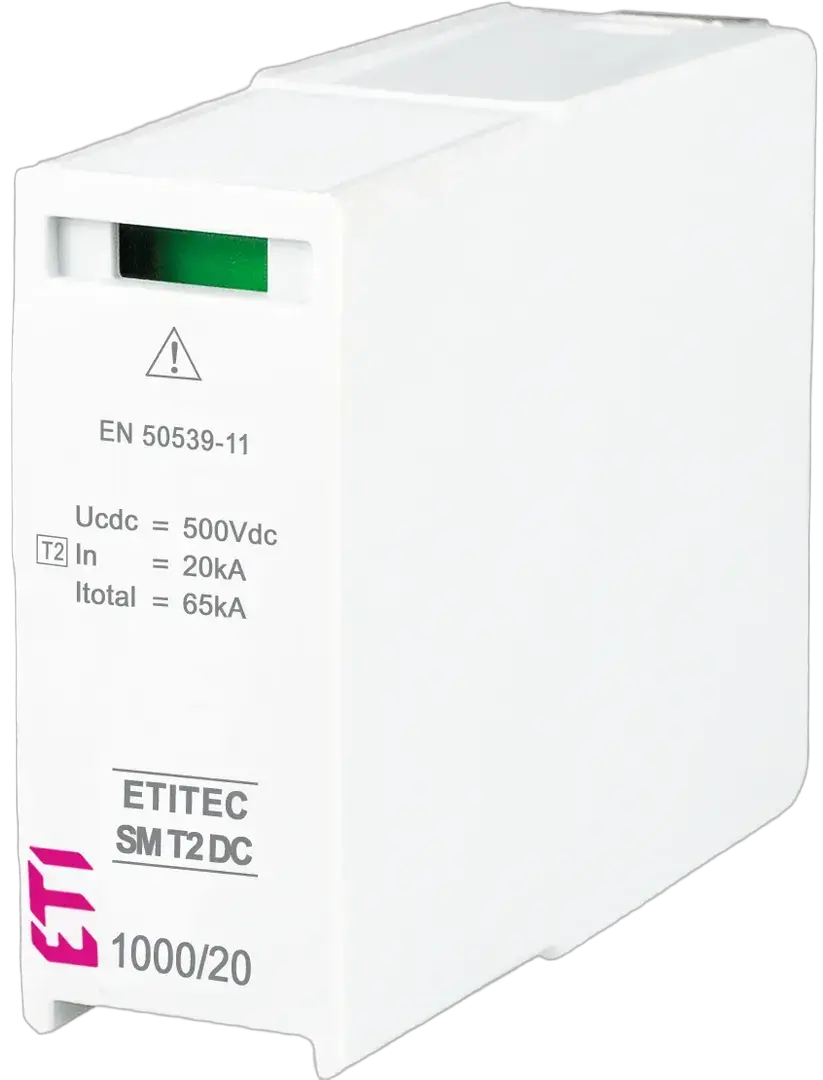

MOD. SM T2 DC 500/20 M Surge arrester
- ETI Code:
- 002440731
- Function:
- SPD Module
- To use with:
- ETITEC SM T2 DC
- Current type:
- DC
- Network system:
- DC
- Catalogue Group:
- ETITEC SM DC
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- No
- Applied Technology:
- MOV, GDT
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Uc Continous Operating Voltage DC:
- 500 V
- Surge arrester type:
- T2
18 Logistics
Product
- Net weight of the product
- 0.042 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966197
- Basic packaging weight
- 0.049 kg
- Basic Packaging Dimensions Height
- 72 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895966203
- Transport packaging weight
- 1.257 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 8,160 pcs
- Customs tariff
- 85363090
13 ETIM
- Max. discharge surge current (8/20)
- 65 kA
- Max. continuous voltage DC
- 500 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Nominal voltage DC
- 900 V
- Short-circuit breaking capacity (Isccr)
- 30 kA
- Voltage protection level
- 2.5 kV
- Signalling at the device
- Optical
- Category type 2
- Yes
- Max. continuous voltage AC
- 500 V
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- Yes
ETIM Classification – Version 9.0
