002440729

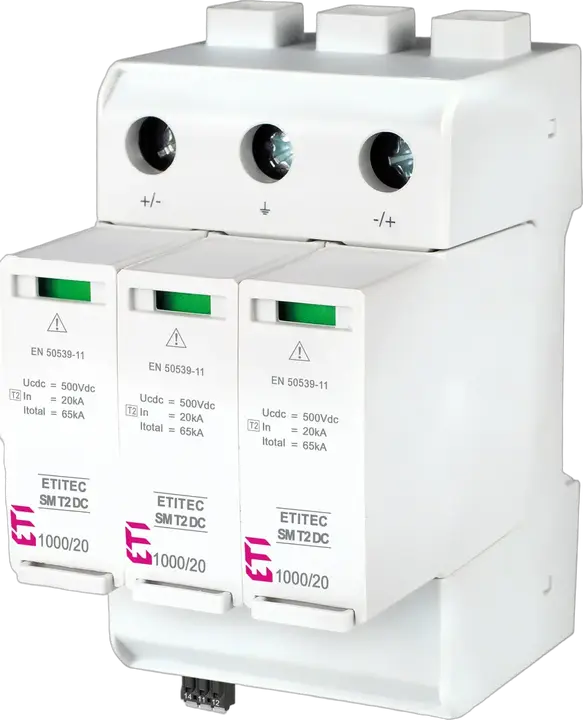

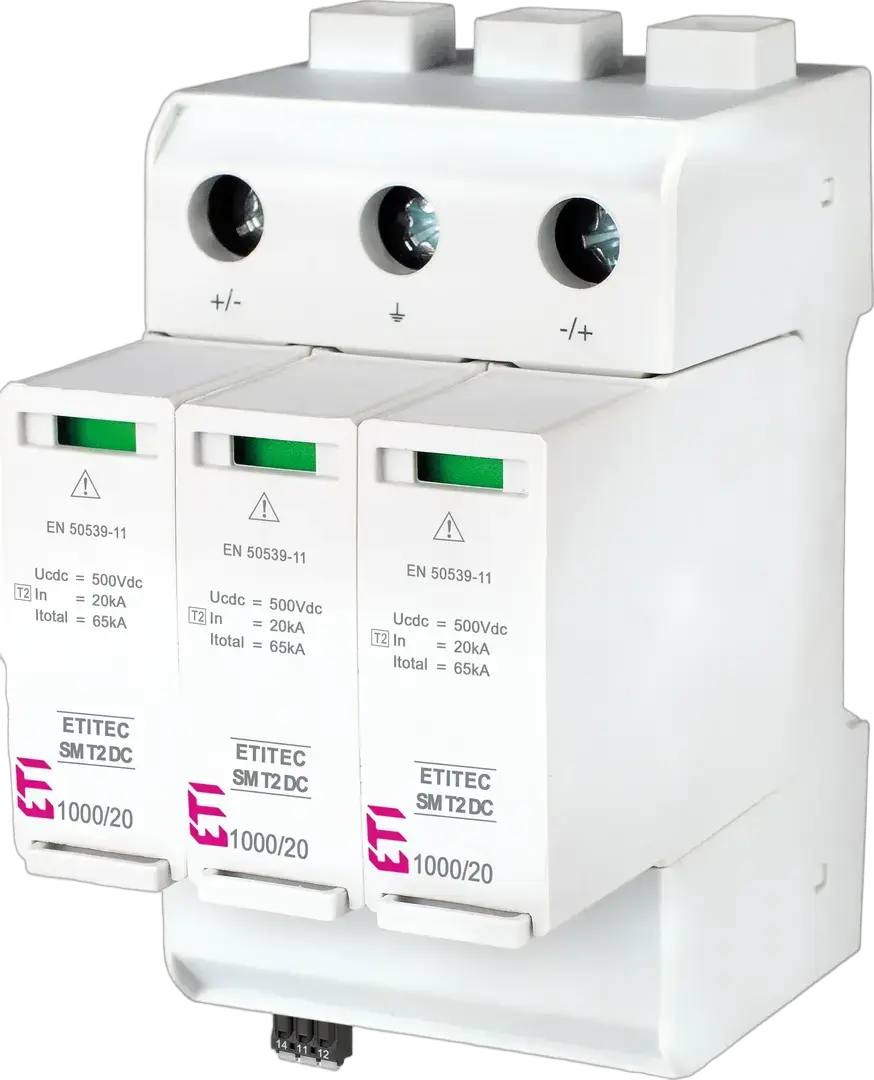

ETITEC SM T2 DC 1000/20 Y RC Surge arrester
- ETI Code:
- 002440729
- Function:
- SPD
- Current type:
- DC
- Catalogue Group:
- ETITEC SM DC
- Installation:
- Home and residental building protection
- Remote signalisation:
- Yes
- IP rating:
- IP20
- Number of modules:
- 3
- Up - Voltage Protection Level:
- 4.8 kV
- Leakage Current:
- No
- Applied Technology:
- MOV, GDT
- Built-in depth:
- 70 mm
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Connectable conductor cross section solid-core:
- 35 mm²
- Uc Continous Operating Voltage DC:
- 1,000 V
- Surge arrester type:
- T2
18 Logistics
Product
- Net weight of the product
- 0.395 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966159
- Basic packaging weight
- 0.425 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 62 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.512 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895966166
- Transport packaging weight
- 2.206 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 1,130 pcs
- Customs tariff
- 85363090
18 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 65 kA
- Number of conductors (without earthing)
- 2
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1,000 V
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Nominal voltage DC
- 900 V
- Short-circuit breaking capacity (Isccr)
- 30 kA
- Voltage protection level
- 4.8 kV
- Signalling at the device
- Optical
- Category type 2
- Yes
- Voltage protection level N-PE
- 2.5 kV
- Max. continuous voltage AC
- 100 V
- With remote signalling contact
- Yes
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- Yes
ETIM Classification – Version 9.0
