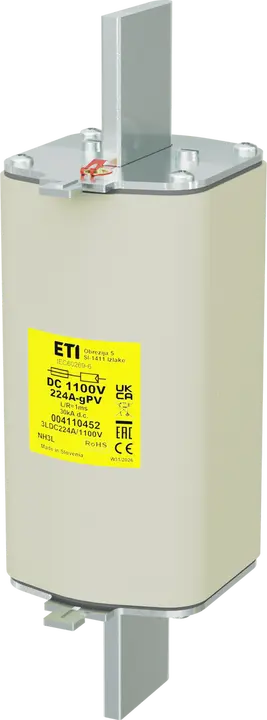

NH3L gPV 224A/1100V DC Fuse link
- ETI Code:
- 004110452
- Fuse type:
- NH
- Size:
- NH3L
- Rated current:
- 224 A
- Time-Current Characteristic:
- gPV
- Indicator:
- Top fuse status indicator
- Rated DC voltage:
- 1100 V
- Breaking capacity DC:
- 10 kA
- L/R:
- 5 ms
- Power dissipation (0,7xIn):
- 17.5 W
- Power dissipation:
- 44 W
- Prearcing joule integral (A2s):
- 60,000
- Operating joule integral (A2s):
- 88,000
- Standards:
- IEC 60269-6
- Application:
- Fuse link for DC application
21 Logistics
Product
- Net weight of the product
- 1,500 g
- Net width
- 65 mm
- Net height
- 209 mm
- Net depth
- 83.6 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895569558
- Basic packaging weight
- 1.56 kg
- Basic Packaging Dimensions Height
- 0.077 m
- Basic Packaging Dimensions Width
- 0.224 m
- Basic Packaging Dimensions Depth
- 0.102 m
- Basic packaging volume
- 0.002 m³
Transport Packaging
- Transport packaging quantity
- 9 pcs
- EAN code for a transport packaging
- 3838895569565
- Transport packaging weight
- 14.39 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 468 pcs
- Customs tariff
- 85351000
8 ETIM
- Voltage type
- DC
- Fuse construction type according to IEC 60269
- 3L
- Power loss at rated current
- 44 W
- Rated switching capacity DC
- 10 kA
- Type of fuse status indicator
- Top fuse status indicator
- Rated current
- 224 A
- Rated voltage DC
- 1,100
- Utilization category
- gPV (photovoltaic protection)
