004110234

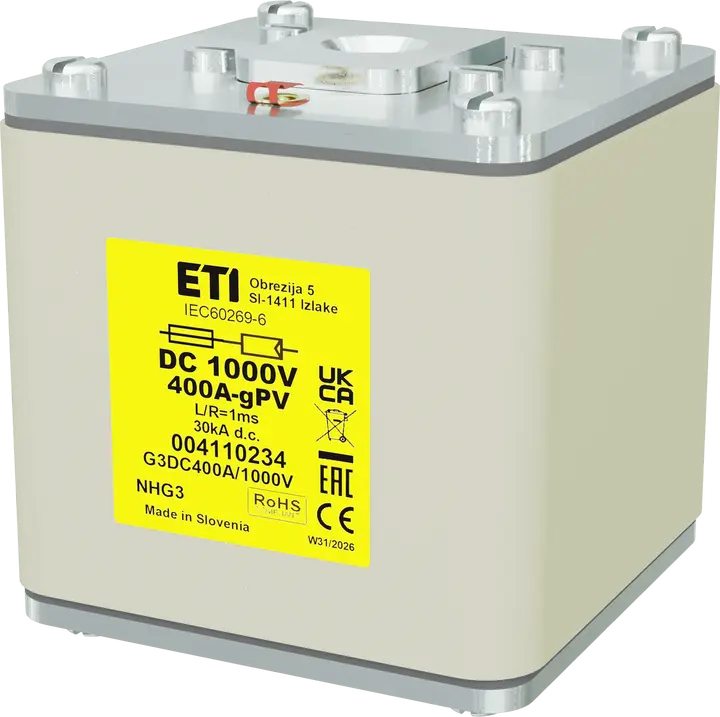

NHG3 gPV 400A/1000V DC Fuse link

ETI Code:: 004110234
Fuse type:: NH-G
Size:: NH3
Rated current:: 400 A
Time-Current Characteristic:: gPV
Indicator:: Centre trip indicator for MK
Rated DC voltage:: 1000 V
Breaking capacity DC:: 30 kA
L/R:: 1 ms
Power dissipation (0,7xIn):: 24 W
Power dissipation:: 58 W
Prearcing joule integral (A2s):: 46,000
Operating joule integral (A2s):: 138,000
Standards:: IEC 60269-6
Application:: Fuse link for DC application

Product

EAN code for a single product: 3838400057419
Net weight of the product: 1,250 g
Net width: 73 mm
Net height: 75 mm
Net depth: 73 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 2 pcs
EAN code for a basic packaging: 3838895956785
Basic packaging weight: 2.54 kg
Basic Packaging Dimensions Height: 0.152 m
Basic Packaging Dimensions Width: 0.09 m
Basic Packaging Dimensions Depth: 0.074 m
Basic packaging volume: 0.001 m³

Transport Packaging

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895956792
Transport packaging weight: 10.237 kg
Transport Packaging Dimensions Height: 0.165 m
Transport Packaging Dimensions Width: 0.195 m
Transport Packaging Dimensions Depth: 0.16 m
Transport packaging volume: 0.005 m³
Pallet quantity: 896 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH3
Power loss at rated current: 58 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Other
Rated current: 400 A
Rated voltage DC: 1,000
Utilization category: gPV (photovoltaic protection)

ETIM Classification – Version 9.0
