004661913

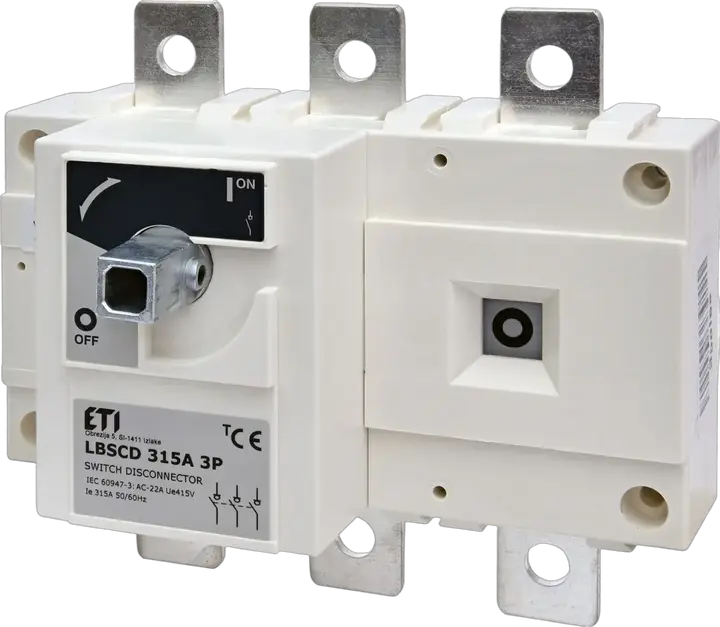

LBSCD 315 3P Switch disconnector
- ETI Code:
- 004661913
- Type of Installation:
- Base plate mounting
- Number of poles:
- 3
- Thermal current Ith:
- 315 A
- Rated operational current Ie AC-21 A/B at 415V:
- 315 A
- Rated Insulation Voltage:
- 800 V
- Max. rated operational voltage (AC):
- 690 V
14 Logistics
Product
- Net weight of the product
- 1.76 kg
- Net width
- 180 mm
- Net height
- 160 mm
- Net depth
- 100.1 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895875765
- Transport packaging weight
- 1.76 kg
- Transport Packaging Dimensions Height
- 110 mm
- Transport Packaging Dimensions Width
- 235 mm
- Transport Packaging Dimensions Depth
- 180 mm
- Transport packaging volume
- 4.653 dm³
- Pallet quantity
- 215 pcs
- Customs tariff
- 85365080
