004661983

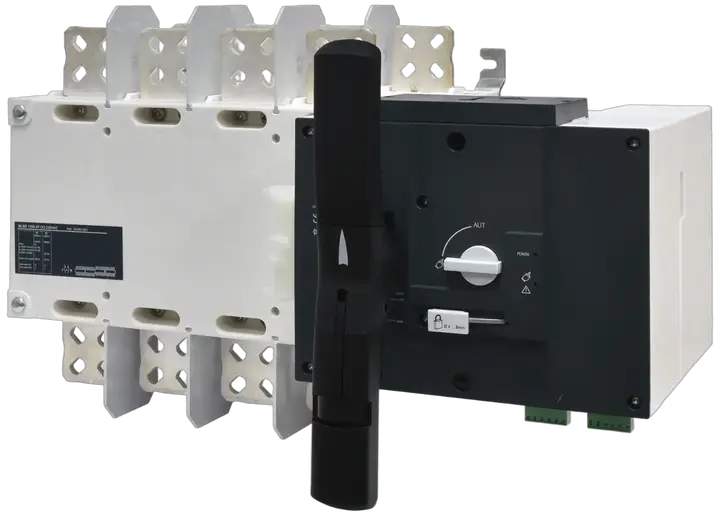

MLBS 1250 4P CO 230VAC Changeover switch motor op.
- ETI Code:
- 004661983
- Number of poles:
- 4
- Thermal current Ith:
- 1,250 A
- Rated operational current Ie AC-21 A/B at 415V:
- 1250 A
- Rated Insulation Voltage:
- 1,000 V
- Max. rated operational voltage (AC):
- 690 V
- Control voltage:
- 230VAC
14 Logistics
Product
- Net weight of the product
- 49.5 kg
- Net width
- 583.8 mm
- Net height
- 370 mm
- Net depth
- 412.75 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400120090
- Transport packaging weight
- 49.5 kg
- Transport Packaging Dimensions Height
- 610 mm
- Transport Packaging Dimensions Width
- 800 mm
- Transport Packaging Dimensions Depth
- 600 mm
- Transport packaging volume
- 292.8 dm³
- Pallet quantity
- 3 pcs
- Customs tariff
- 85365080
