004661859
Obsolete

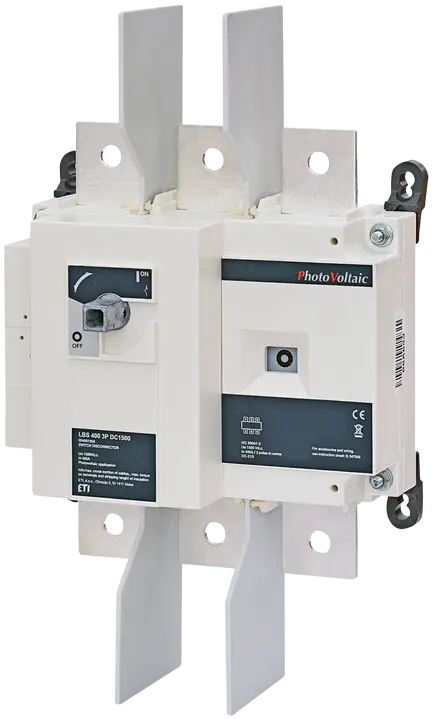

*LBS 400 3P DC1500 Switch disconnector PV
- ETI Code:
- 004661859
- Type of Installation:
- Base plate mounting
- Operation:
- ON-OFF
- Catalogue Group:
- Load break switch
- Type description:
- 400A
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 3
- Max. rated operational voltage Ur:
- 1,500 V
- Thermal current Ith:
- 400 A
- Rated operational current Ie DC-21 B at 1000V DC:
- 400 A
11 Logistics
Product
- Net depth
- 147.2 mm
- Net weight of the product
- 6.27 kg
- Net width
- 230 mm
- Net height
- 400 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging weight
- 6.2 kg
- Transport packaging volume
- 31 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85365080
- EAN code for a transport packaging
- 3838895823780
- Pallet quantity
- 30 pcs
6 ETIM
- Max. rated operation voltage Ue AC
- 1,500 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 400 A
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Version as main switch
- Yes
ETIM Classification – Version 9.0
