002470133

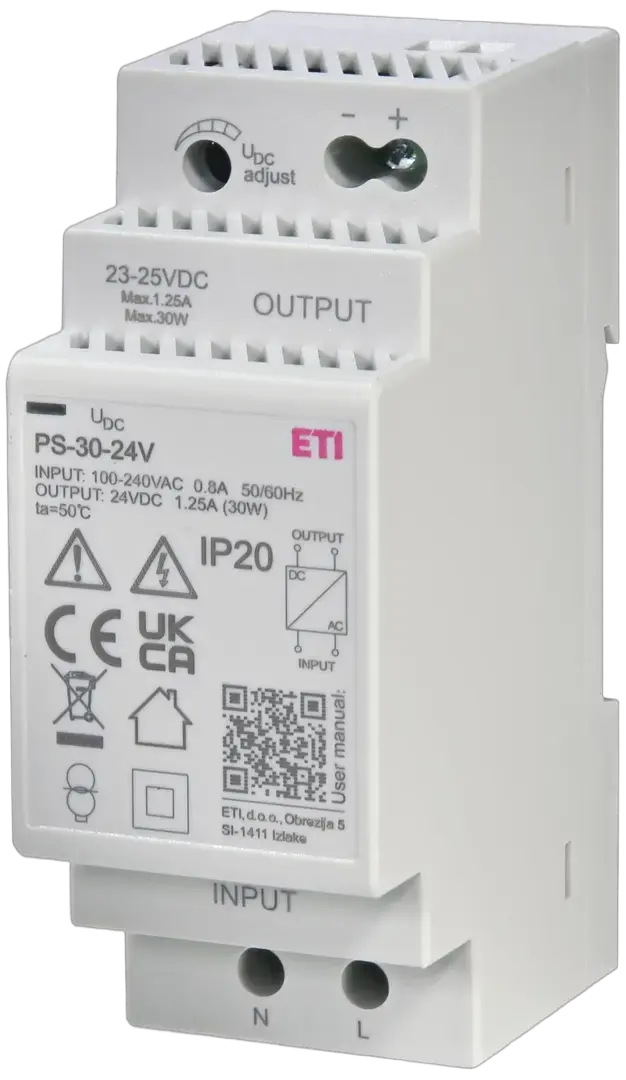

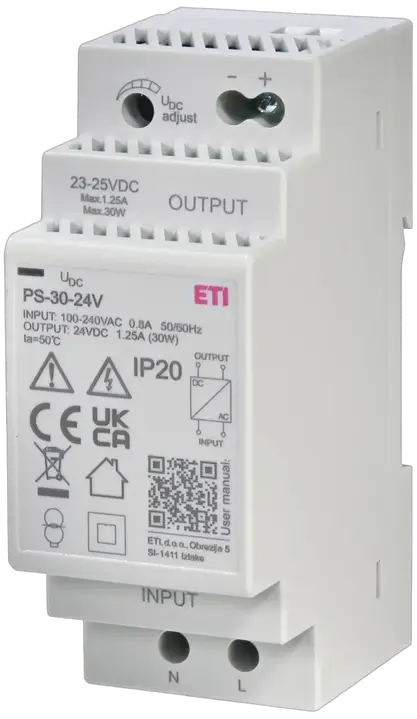

PS-30-24 Power supply
- ETI Code:
- 002470133
- Function:
- Power supplies AC/DC
- Type of installation:
- DIN rail 35 mm
- Rated supply voltage (AC):
- 100-250 V
- Rated power:
- 30 W
- Output voltage:
- 24 V
- Output current (A):
- 1.25 A
- Rated supply voltage (DC):
- 140-340 V
- Rated frequency:
- 50/60 Hz
- Catalogue group:
- Power supplies AC/DC
- IP rating:
- IP20
14 Logistics
Product
- Net weight of the product
- 0.068 kg
- Net width
- 52 mm
- Net height
- 94.4 mm
- Net depth
- 64.12 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895473268
- Transport packaging weight
- 0.15 kg
- Transport Packaging Dimensions Height
- 35 mm
- Transport Packaging Dimensions Width
- 90 mm
- Transport Packaging Dimensions Depth
- 58 mm
- Transport packaging volume
- 0.183 dm³
- Pallet quantity
- 5,143 pcs
- Customs tariff
- 85364900
2 ETIM
- Degree of protection (IP)
- IP20
- Type of electric connection
- Clip connection
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
23 Tags
002470133Power supplyPS-30-24EVE/ETIRELAC/DC POWER SUPPLIESMODULAR DIN RAIL MOUNTED24 VDC1,25 A1,25 AInternationalTransformers and power supplies ETITRAFOPower supplies AC/DCRated supply voltage (AC): 100 V-250 VRated power: 30 W-30 WOutput voltage: 24 VOutput current (A): 1.25 ARated supply voltage (DC): 140 V-340 VRated frequency: 50 Hz/60 HzCatalogue group: Power supplies AC/DCIP rating: IP20Function: Power supplies AC/DCType of installation: DIN rail 35 mmPower supply TOWAR Rated supply voltage (AC): 100 V-250 V Rated power: 30 W-30 W Output voltage: 24 V Output current (A): 1.25 A Rated supply voltage (DC): 140 V-340 V Rated frequency: 50 Hz/60 Hz Catalogue group: Power supplies AC/DC IP rating: IP20
Similar Products 7 All Products
002470132

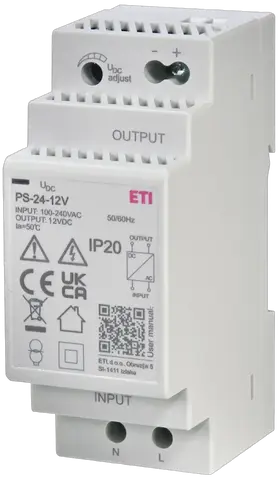

PS-24-12
- Class name
- Power supply
- Rated supply voltage (AC)
- 100-250 V
- Rated power
- 24 W
- Output voltage
- 12 V
- Output current (A)
- 2 A
002470299
PS-15-12
- Class name
- Power supply
- Rated supply voltage (AC)
- 100-240 V
- Rated power
- 15 W
- Output voltage
- 12 V
- Output current (A)
- 1.25 A
004656681

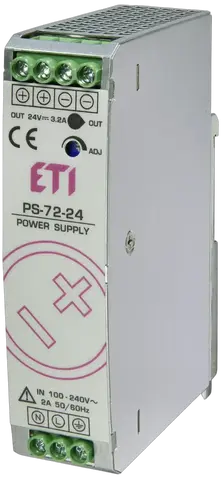

PS-72-24
- Class name
- Power supply
- Rated supply voltage (AC)
- 100-240 V
- Rated power
- 75 W
- Output voltage
- 24 V
- Output current (A)
- 3.15 A
004656682
PS-120-24
- Class name
- Power supply
- Rated supply voltage (AC)
- 100-240 V
- Rated power
- 120 W
- Output voltage
- 24 V
- Output current (A)
- 5 A
004656683
PS-240-24
- Class name
- Power supply
- Rated supply voltage (AC)
- 100-240 V
- Rated power
- 240 W
- Output voltage
- 24 V
- Output current (A)
- 10 A
004656684

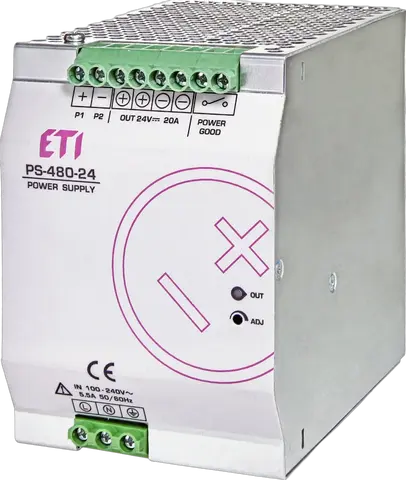

PS-480-24
