004656684

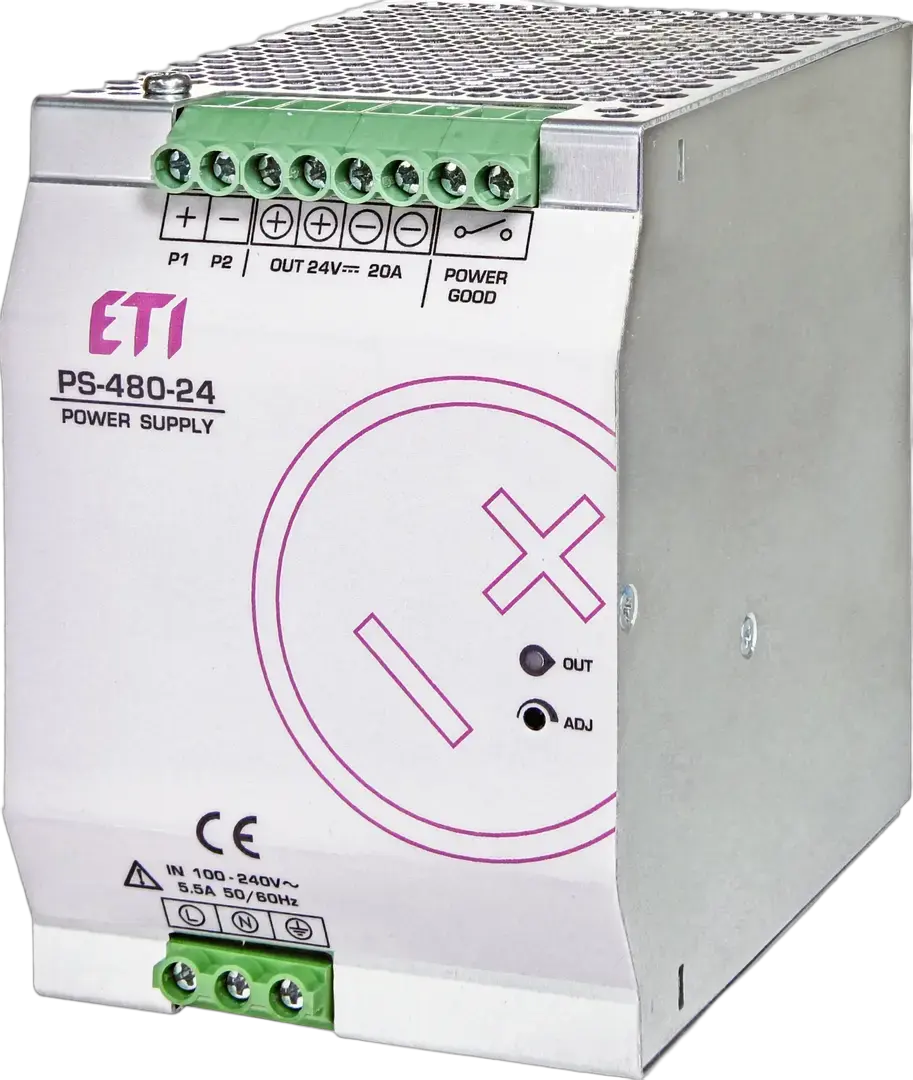

PS-480-24 Power supply
- ETI Code:
- 004656684
- Type of Installation:
- TH 35
- Function:
- Power supplies AC/DC
- IP rating:
- IP20
- Rated supply voltage (AC):
- 100-240 V
- Rated supply voltage (DC):
- 140-340 V
- Output voltage:
- 24 V
- Output current (A):
- 20 A
- Rated Frequency:
- 47/63 Hz
- Catalogue Group:
- Power supplies AC/DC
14 Logistics
Product
- Net depth
- 137.8 mm
- Net weight of the product
- 1.65 kg
- Net width
- 90.6 mm
- Net height
- 130 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging weight
- 1.65 kg
- Transport packaging volume
- 1.484 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85044060
- Transport Packaging Dimensions Height
- 86 mm
- Transport Packaging Dimensions Width
- 138 mm
- Transport Packaging Dimensions Depth
- 125 mm
- EAN code for a transport packaging
- 3838895832461
- Pallet quantity
- 674 pcs
