003801046

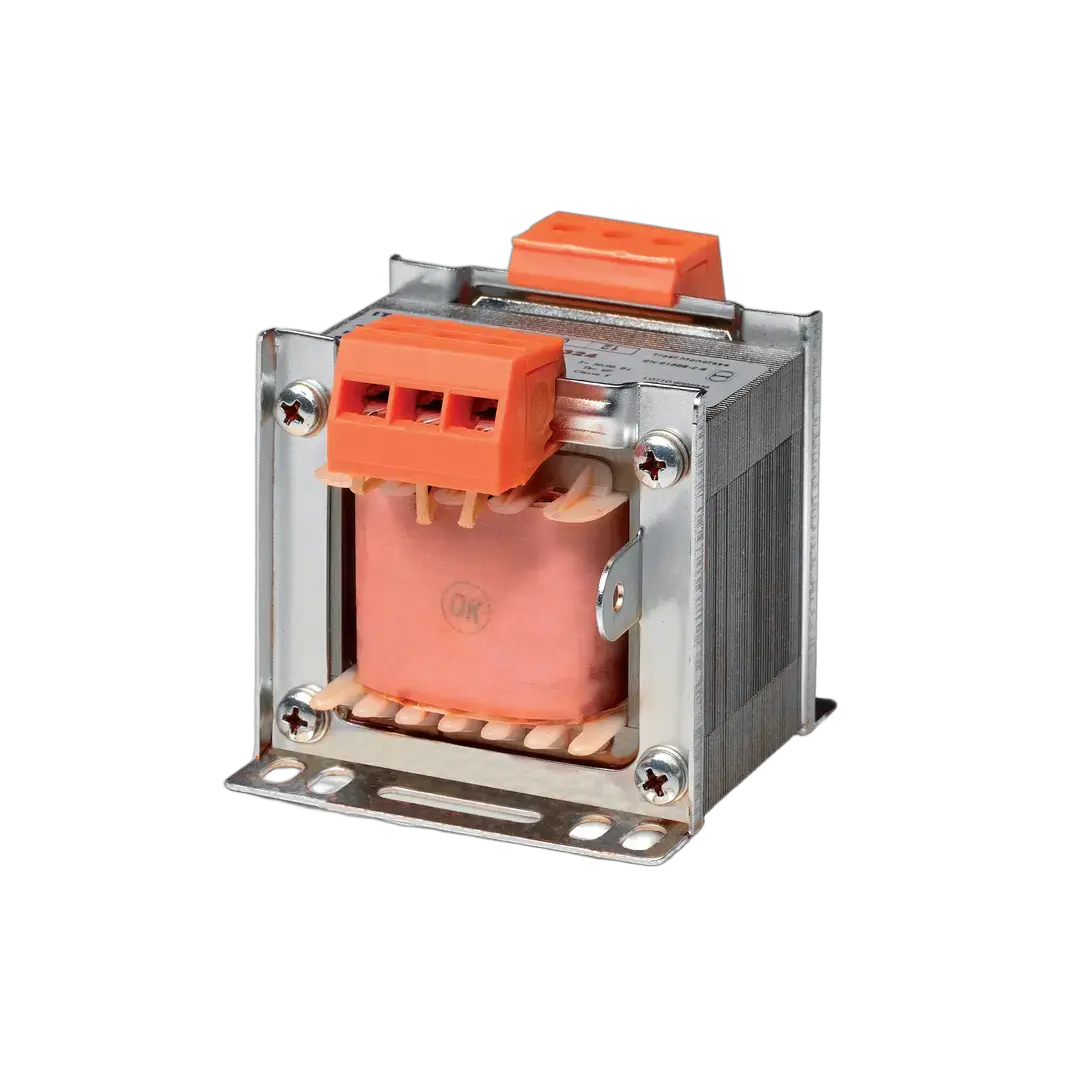

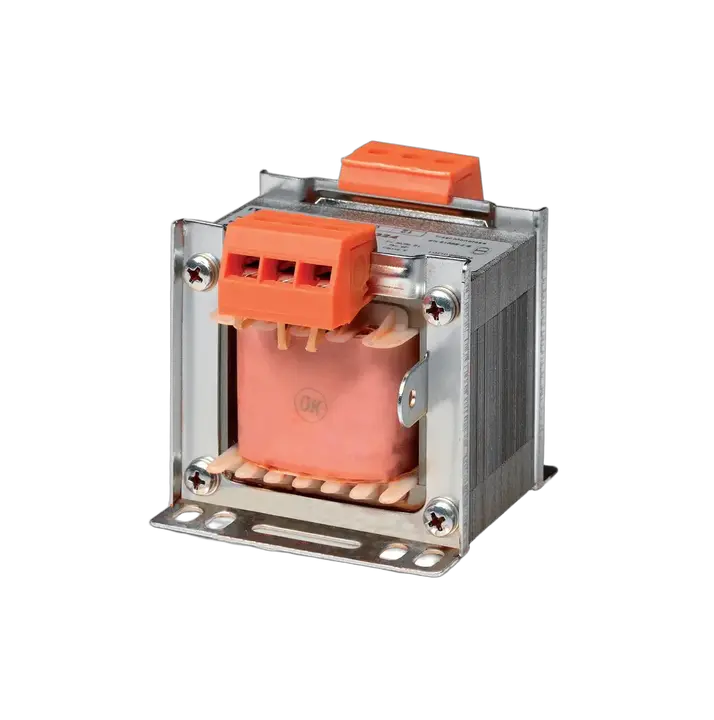

TR 1f 24-0-24V 2500VA Transformer
- ETI Code:
- 003801046
- Catalogue Group:
- Single phase safety transformers for plate mounting
- IP rating:
- IP00
- No. Of Phases:
- Single
- Power:
- 2,500 VA
- Primary voltage Up:
- 230/400 V
- Secondary voltage Us:
- 0-24 V
4 Documents
14 Logistics
Product
- Net weight of the product
- 23 kg
- Net width
- 195 mm
- Net height
- 187 mm
- Net depth
- 190 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895477723
- Transport packaging weight
- 23 kg
- Transport Packaging Dimensions Height
- 195 mm
- Transport Packaging Dimensions Width
- 187 mm
- Transport Packaging Dimensions Depth
- 190 mm
- Transport packaging volume
- 7 dm³
- Pallet quantity
- 26 pcs
- Customs tariff
- 85043180
14 ETIM
- Built as safety transformer
- Yes
- Degree of protection (IP)
- IP00
- Rated apparent power
- 2,500 VA
- Type of insulation material according to IEC 85
- B
- Secondary voltage 3(Min)
- 48 V
- Primary voltage 1(Min)
- 230 V
- Secondary voltage 2(Min)
- 24 V
- Secondary voltage 1(Min)
- 24 V
- Primary voltage 2(Min)
- 400 V
- Secondary voltage 3(Max)
- 48 V
- Primary voltage 2(Max)
- 400 V
- Secondary voltage 1(Max)
- 24 V
- Secondary voltage 2(Max)
- 24 V
- Primary voltage 1(Max)
- 230 V
ETIM Classification – Version 9.0
