001696013

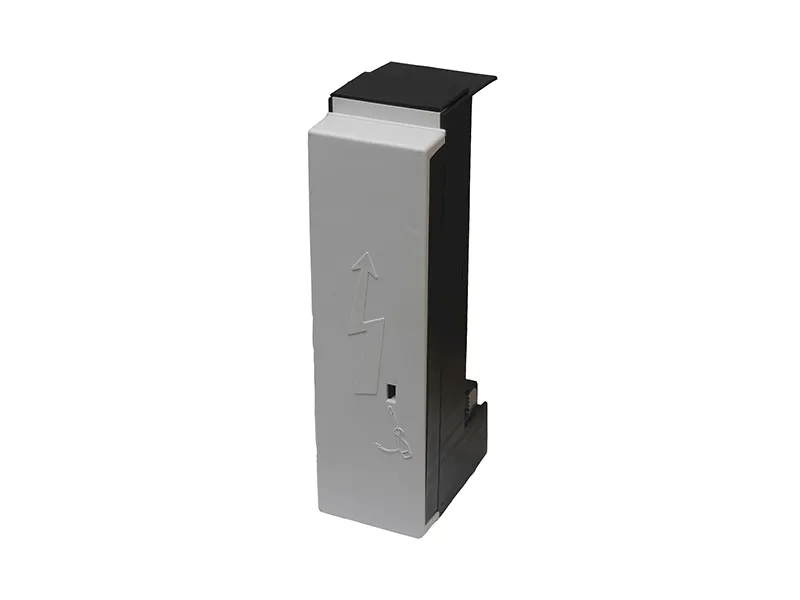

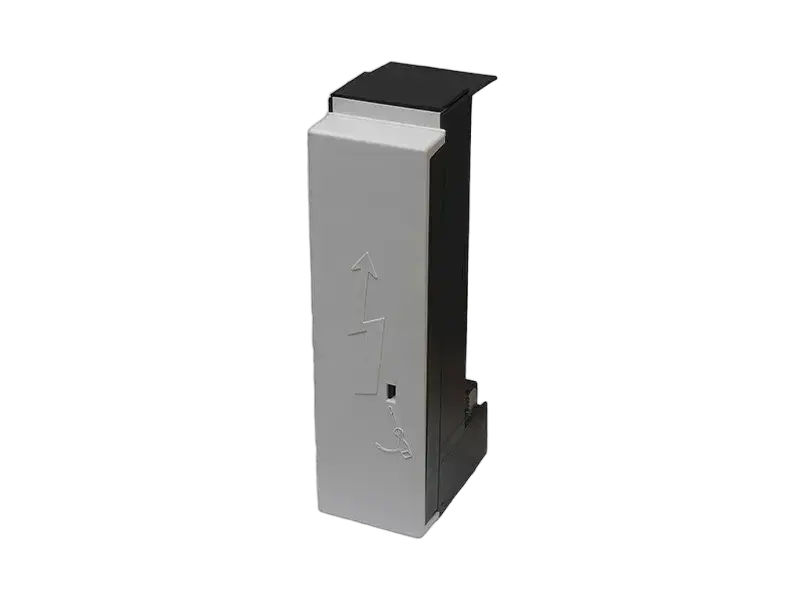

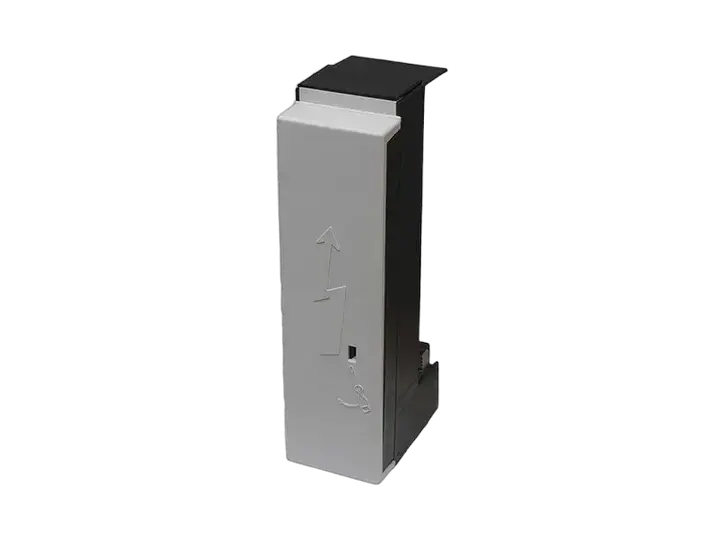

CM-60/250/3 Connection adapter
- ETI Code:
- 001696013
- Color:
- White
- Function:
- Connecting module
- Rated current:
- 250 A
- Number of poles:
- 3
- Rated cross section:
- 1.5-70 mm²
14 Logistics
Product
- Net weight of the product
- 0.484 kg
- Net width
- 54 mm
- Net height
- 206 mm
- Net depth
- 85.64 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4029155245551
- Transport packaging weight
- 0.542 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 206 mm
- Transport Packaging Dimensions Depth
- 88 mm
- Transport packaging volume
- 1.849 dm³
- Pallet quantity
- 385 pcs
- Customs tariff
- 85369010
5 ETIM
- Model
- Single
- Rated current AC 50 Hz
- 250 A
- Number of poles
- 3
- Power supply position
- Centre
- Colour
- White
ETIM Classification – Version 9.0
