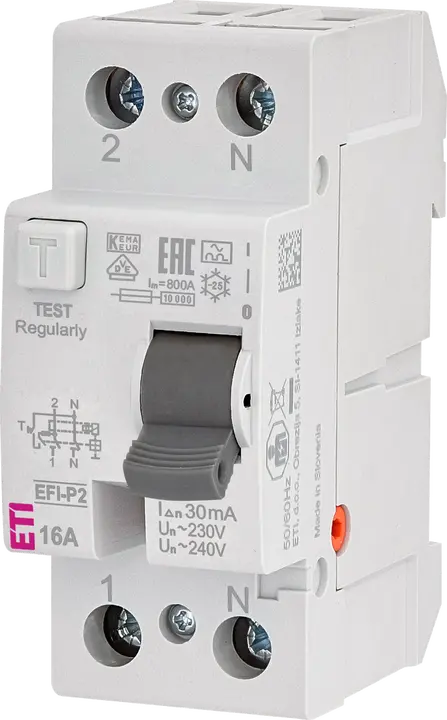

RCCB EFI-P2 A 16/0.03 002061110

Specifications

ETI Code:
002061110
Description:
EFI-P2 A 16/0.03
Class name:
RCCB
IP rating:
IP20
Current type:
A
Depth (mm):
68
Mounting:
DIN rail
Rated current (A):
16
Rated residual operating current IΔn (A):
0.03
Type:
A
No. Of poles:
1+N
Rated conditional short-circuit current Inc (kA):
10
Tripping time:
Instantaneous
Rated voltage (V):
240
Rated Frequency (Hz):
50/60
Terminals (mm2):
1-25
Standards:
IEC/EN 61008

Documents

Product

EAN code for a single product

Net weight of the product
164  g
Customs tariff
85362010
logis_net_width
36  mm
logis_net_height
88  mm
logis_net_depth
75  mm

Level 1 Packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895864226
Basic packaging weight
0.187  kg

Level 2 Packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895864233
Transport packaging weight
10.398  kg
Pallet quantity
2808
Classification
EC000003
Class name
Residual current circuit breaker (RCCB)
Degree of protection (IP), front side
IP20
Type of drive
50/60
Number of knife blade fuse holders
1+N
Number of poles
2
Rated voltage
230/240V
Rated current
16A
Rated fault current
0,03mA
Mounting method
DIN rail
Leakage current type
A
Short-circuit breaking capacity (Icw)
10kA
Surge current capacity
0,4kA
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Built-in depth
68mm
Connectable conductor cross section multi-wired
1-25mm²
ETIM Classification – Version 7.0
