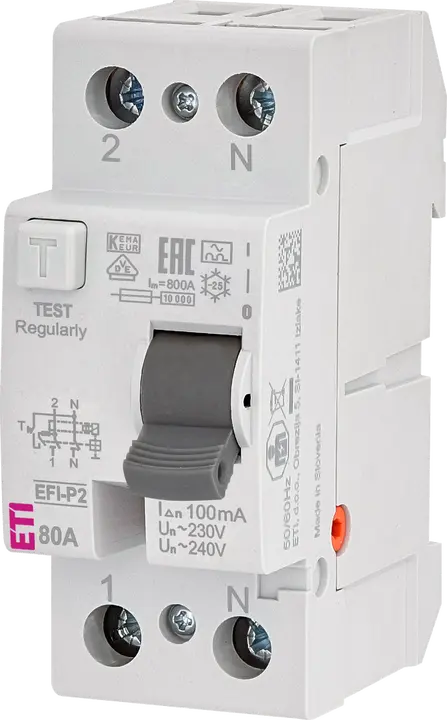

RCCB EFI-P2 A 80/0.1 002061124

Specifications

ETI Code:
002061124
Description:
EFI-P2 A 80/0.1
Class name:
RCCB
IP rating:
IP20
Current type:
A
Depth (mm):
68
Mounting:
DIN rail
Rated current (A):
80
Rated residual operating current IΔn (A):
0.1
Type:
A
No. Of poles:
1+N
Rated conditional short-circuit current Inc (kA):
10
Tripping time:
Instantaneous
Rated voltage (V):
240
Rated Frequency (Hz):
50/60
Terminals (mm2):
1-25
Standards:
IEC/EN 61008

Documents

Product

EAN code for a single product

Net weight of the product
171  g
Customs tariff
85362090
logis_net_width
36  mm
logis_net_height
88  mm
logis_net_depth
75  mm

Level 1 Packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895865391
Basic packaging weight
0.194  kg

Level 2 Packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895865407
Transport packaging weight
10.776  kg
Pallet quantity
2808
Classification
EC000003
Class name
Residual current circuit breaker (RCCB)
Type of drive
50/60
Degree of protection (IP), front side
IP20
Number of knife blade fuse holders
1+N
Number of poles
2
Rated voltage
230/240V
Rated current
80A
Rated fault current
0,1mA
Mounting method
DIN rail
Leakage current type
A
Short-circuit breaking capacity (Icw)
10kA
Surge current capacity
0,4kA
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Built-in depth
68mm
Connectable conductor cross section multi-wired
1-25mm²
ETIM Classification – Version 7.0
