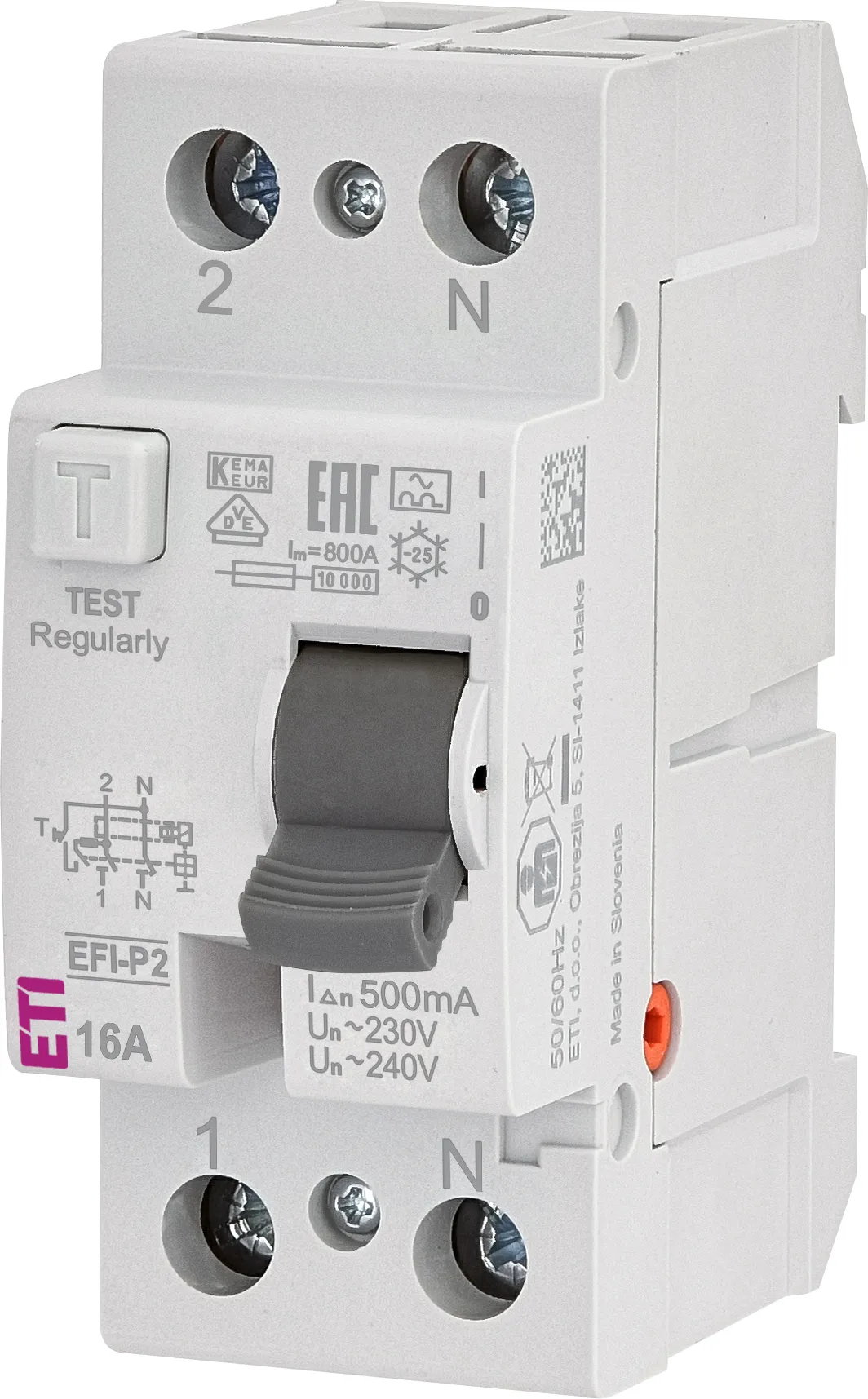

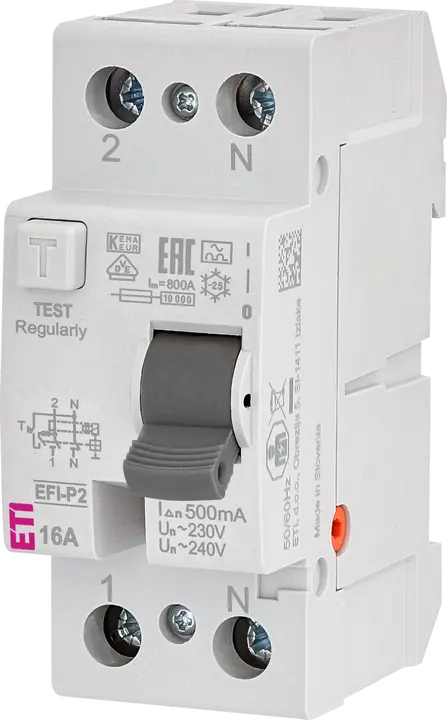

RCCB EFI-P2 A 16/0.5 002061140

Specifications

ETI Code:
002061140
Description:
EFI-P2 A 16/0.5
Class name:
RCCB
Rated current (A):
16
Rated residual operating current IΔn (A):
0.5
Type:
A
No. Of poles:
1+N
Rated conditional short-circuit current Inc (kA):
10
Tripping time:
Instantaneous
Rated voltage (V):
240
Rated Frequency (Hz):
50/60
Terminals (mm2):
1-25
Standards:
IEC/EN 61008

Documents

Product

EAN code for a single product
3838895865476
Net weight of the product
164 g
Customs tariff
85362010

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895865476
Basic packaging weight
0.187 kg
Basic packaging volume
0.27

Transport packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895865483
Transport packaging weight
10.398 kg
Transport packaging volume
17.4
Pallet quantity
2808
Pallet volume
904.8
Classification
EC000003
Class name
Residual current circuit breaker (RCCB)
Additional equipment possible
No
Built-in depth
68mm
Degree of protection (IP)
IP20
Frequency
50/60 Hz
Leakage current type
A
Mounting method
DIN rail
Nominal rated current
16A
Nominal rated voltage
230/240V
Number of poles
2
Rated fault current
0,5mA
Selective protection
No
Short-circuit breaking capacity (Icw)
10kA
Short-time delayed tripping
No
Surge current capacity
0,4kA
Width in number of modular spacings
2
ETIM Classification – Version 7.0

Images & Diagrams

002061140RCCB, EFI-P2 A 16/0.5ASTIRCCBEFI-P2EFI-P2type AInstantaneousModular current and residual protective devicesResidual current circuit breakers RCCB and accessoriesResidual current circuit breakers RCCBEFI-P2 A 16/0.5Function RCCBRated current 16AType ARated residual current 0,5ARated voltage 240VNo. Of poles 1+NRated AC voltage 230V 240VRated DC voltage 230V 240VCatalogue Group EFI-P2Rated Frequency 50Hz 60HzStandards IEC EN 61008Terminals 1-25Rated residual operating current IΔn 0.5ATripping time InstantaneousRated conditional short-circuit current Inc 10kARCCB EFI 16A 0.5A A 1+N 10kA Instantaneous
