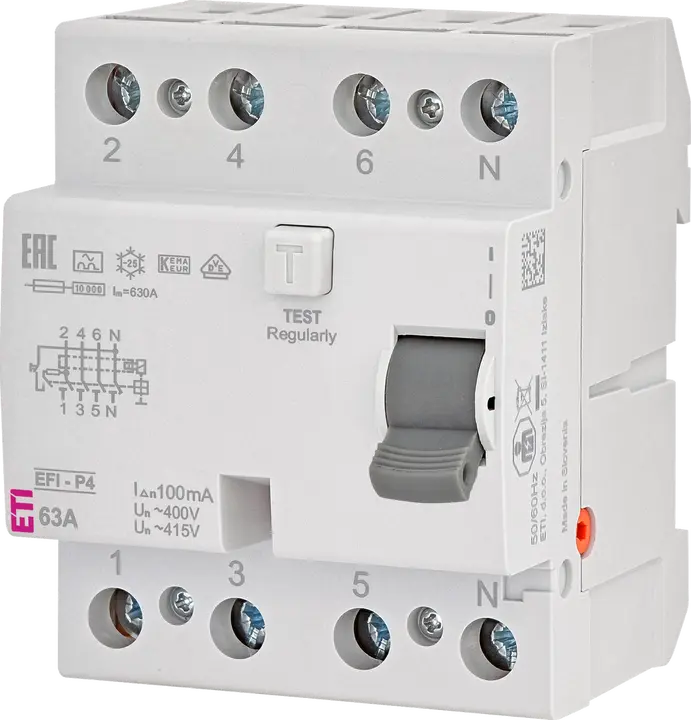

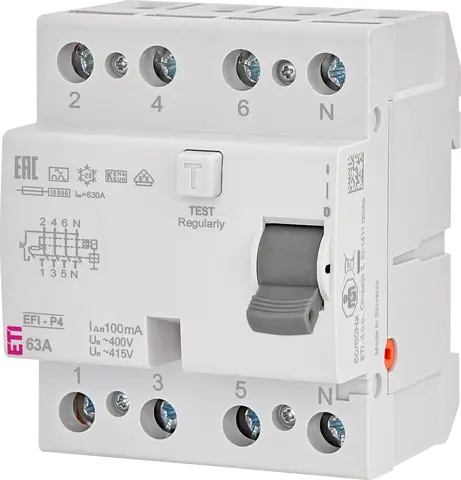

RCCB EFI-P4 A 63/0.1 002061523

Specifications

ETI Code:
002061523
Description:
EFI-P4 A 63/0.1
Class name:
RCCB
Rated current (A):
63
Rated residual operating current IΔn (A):
0.1
Type:
A
No. Of poles:
3+N
Rated conditional short-circuit current Inc (kA):
10
Tripping time:
Instantaneous
Rated voltage (V):
415
Rated Frequency (Hz):
50/60
Terminals (mm2):
1-25
Standards:
IEC/EN 61008

Documents

Product

EAN code for a single product
3838895866404
Net weight of the product
290 g
Customs tariff
85362010

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895866404
Basic packaging weight
0.32 kg
Basic packaging volume
0.5

Transport packaging

Transport packaging quantity
27
EAN code for a transport packaging
3838895866411
Transport packaging weight
8.94 kg
Transport packaging volume
17.4
Pallet quantity
1404
Pallet volume
904.8
Classification
EC000003
Class name
Residual current circuit breaker (RCCB)
Additional equipment possible
No
Built-in depth
68mm
Degree of protection (IP)
IP20
Frequency
50/60 Hz
Leakage current type
A
Mounting method
DIN rail
Nominal rated current
63A
Nominal rated voltage
400/415V
Number of poles
4
Rated fault current
0,1mA
Selective protection
No
Short-circuit breaking capacity (Icw)
10kA
Short-time delayed tripping
No
Surge current capacity
0,4kA
Width in number of modular spacings
4
ETIM Classification – Version 7.0

Images & Diagrams

002061523RCCB, EFI-P4 A 63/0.1ASTIRCCBEFI-P4EFI-P4Type AInstantaneousModular current and residual protective devicesResidual current circuit breakers RCCB and accessoriesResidual current circuit breakers RCCBEFI-P4 A 63/0.1Function RCCBRated current 63AType ARated residual current 0,1ARated voltage 415VNo. Of poles 3+NRated AC voltage 400V 415VRated DC voltage 400V 415VCatalogue Group EFI-P4Rated Frequency 50Hz 60HzStandards IEC EN 61008Terminals 1-25Rated residual operating current IΔn 0.1ATripping time InstantaneousRated conditional short-circuit current Inc 10kARCCB EFI 63A 0.1A A 3+N 10kA Instantaneous
