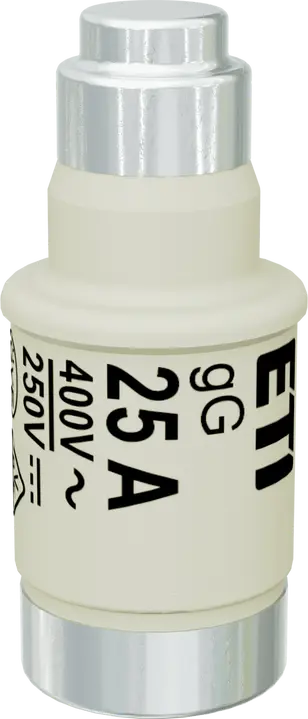

Fuse link D02 gG 25A/400V 002212002

Specifications

ETI Code:
002212002
Description:
D02 gG 25A/400V
Class name:
Fuse link
Rated current (A):
25
Size:
D02
Type:
D0
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For cable protection
Dimensions:
E18
Indicator:
Top fuse status indicator
Power dissipation (W):
2,8
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905684
Net weight of the product
12 g
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895000549
Basic packaging weight
0.12 kg
Basic packaging volume
0.093

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895162506
Transport packaging weight
6.6 kg
Transport packaging volume
6.102
Pallet quantity
60000
Pallet volume
732.24
Classification
EC001642
Class name
D0-system fuse link
Colour code
Yellow
Construction size
D02
Nominal rated current
25A
Nominal rated voltage
400V
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0
