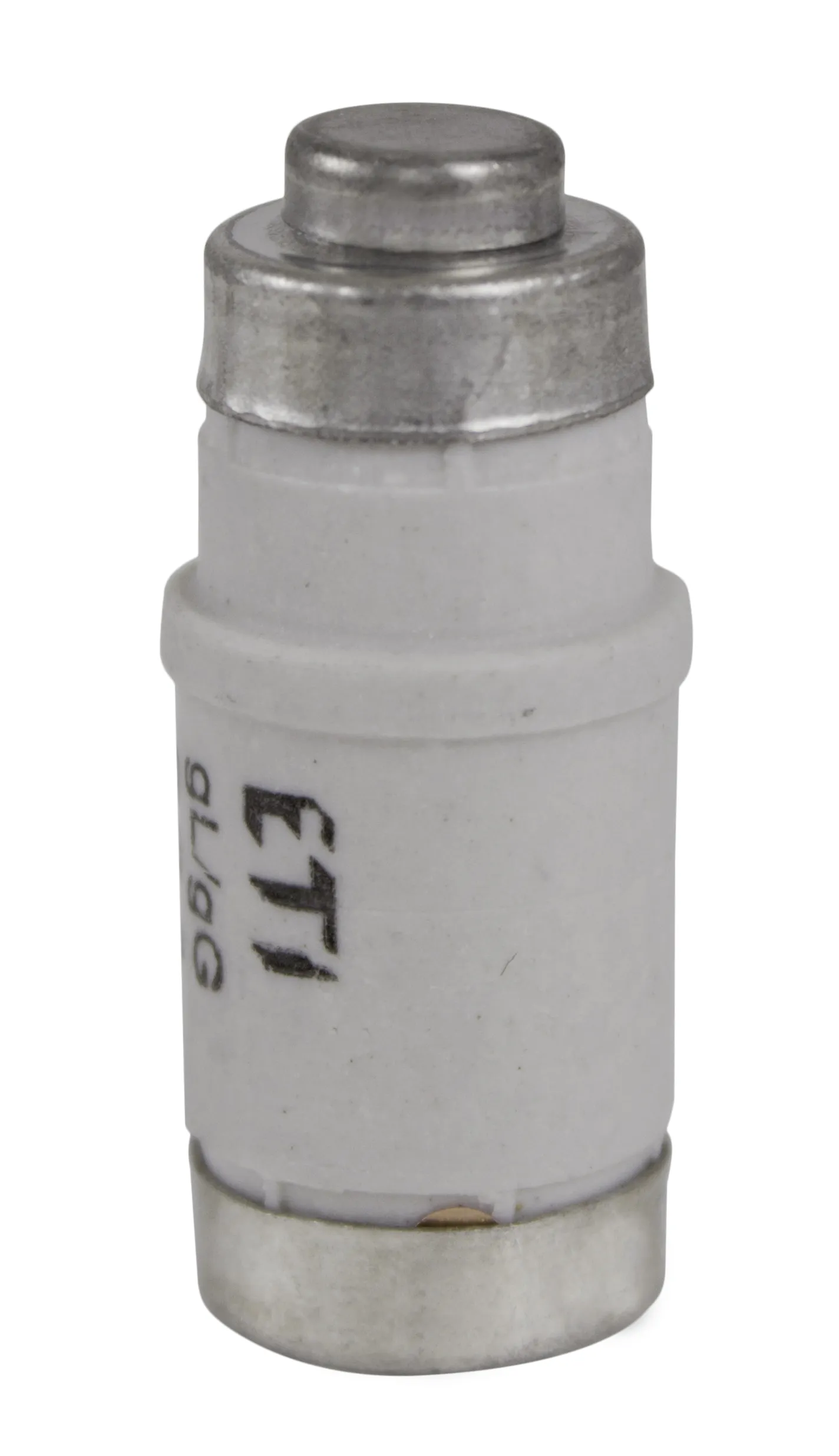

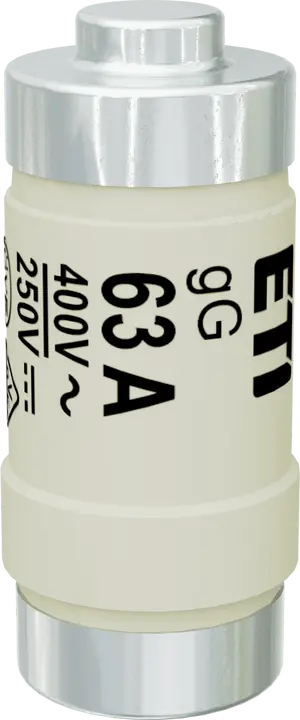

Fuse link D02 gG 63A/400V 002212005

Specifications

ETI Code:
002212005
Description:
D02 gG 63A/400V
Class name:
Fuse link
efuse:
1
Rated current (A):
63
Size:
D02
Type:
D0
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For cable protection
Dimensions:
E18
Indicator:
Top fuse status indicator
Power dissipation (W):
5,4
Operating joule integral (A2s):
22.900
Prearcing joule integral (A2s):
10.000
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905714
Net weight of the product
13  g
Customs tariff
85361050
logis_net_width
16  mm
logis_net_height
16  mm
logis_net_depth
36  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895000570
Basic packaging weight
0.13  kg

Level 2 Packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895162537
Transport packaging weight
6.86  kg
Pallet quantity
60000
Classification
EC001642
Class name
D0-system fuse link
Type of fuse status indicator
Top fuse status indicator
Max. rated operation voltage Ue AC
400
Application
For cable protection
Rated voltage DC
250
Breaking capacity
50
Construction size
D02
Rated current
63A
Rated voltage
400V
Colour code
Copper
ETIM Classification – Version 7.0
