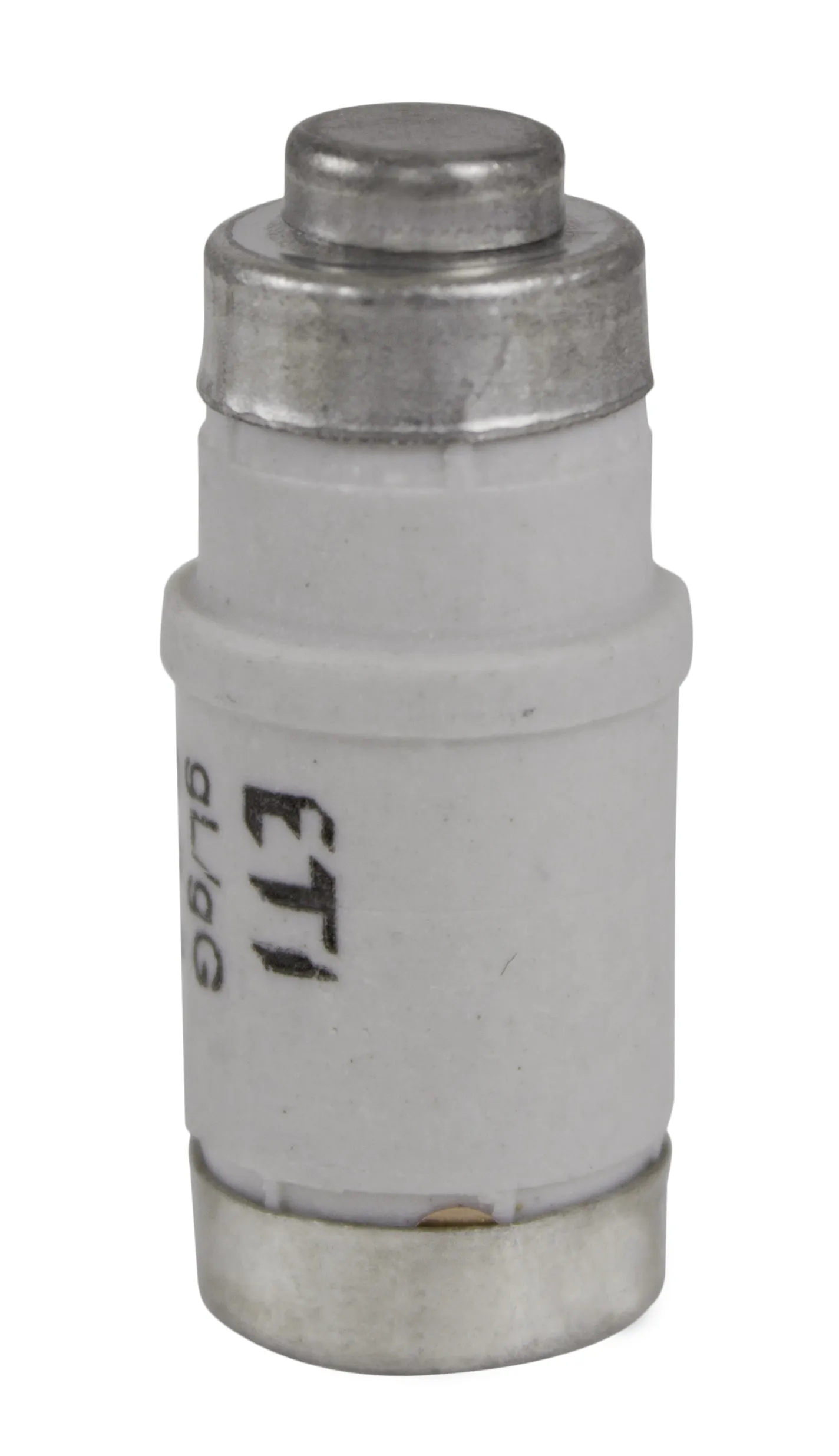

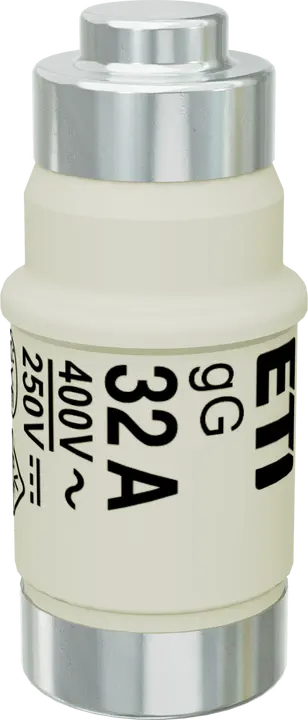

Fuse link D02 gG 32A/400V 002212006

Specifications

ETI Code:
002212006
Description:
D02 gG 32A/400V
Class name:
Fuse link
Rated current (A):
32
Size:
D02
Type:
D0
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For cable protection
Dimensions:
E18
Indicator:
Top fuse status indicator
Power dissipation (W):
3,5
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895138082
Net weight of the product
0.13 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895138082
Basic packaging weight
0.13 kg
Basic packaging volume
0.093

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163473
Transport packaging weight
6.86 kg
Transport packaging volume
6.102
Pallet quantity
60000
Pallet volume
732.24
Classification
EC001642
Class name
D0-system fuse link
Colour code
Black
Construction size
D02
Nominal rated current
32A
Nominal rated voltage
400V
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002212006Fuse link, D02 gG 32A/400VD0Low voltage fuse-linksFuse-link D0Fuse-link D0D02D02Fuse links D, D0, CD0 fuse linksD02 GG 32A/400VRated current 32AType D0Rated voltage 400VSize D02Product group D0 low voltage FusesCharacteristics gGRated AC voltage 400VRated DC voltage 250VDimensions E18Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 3,5WCatalogue Group D0 low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link D02 32A D02 D0 400V 250V gG
