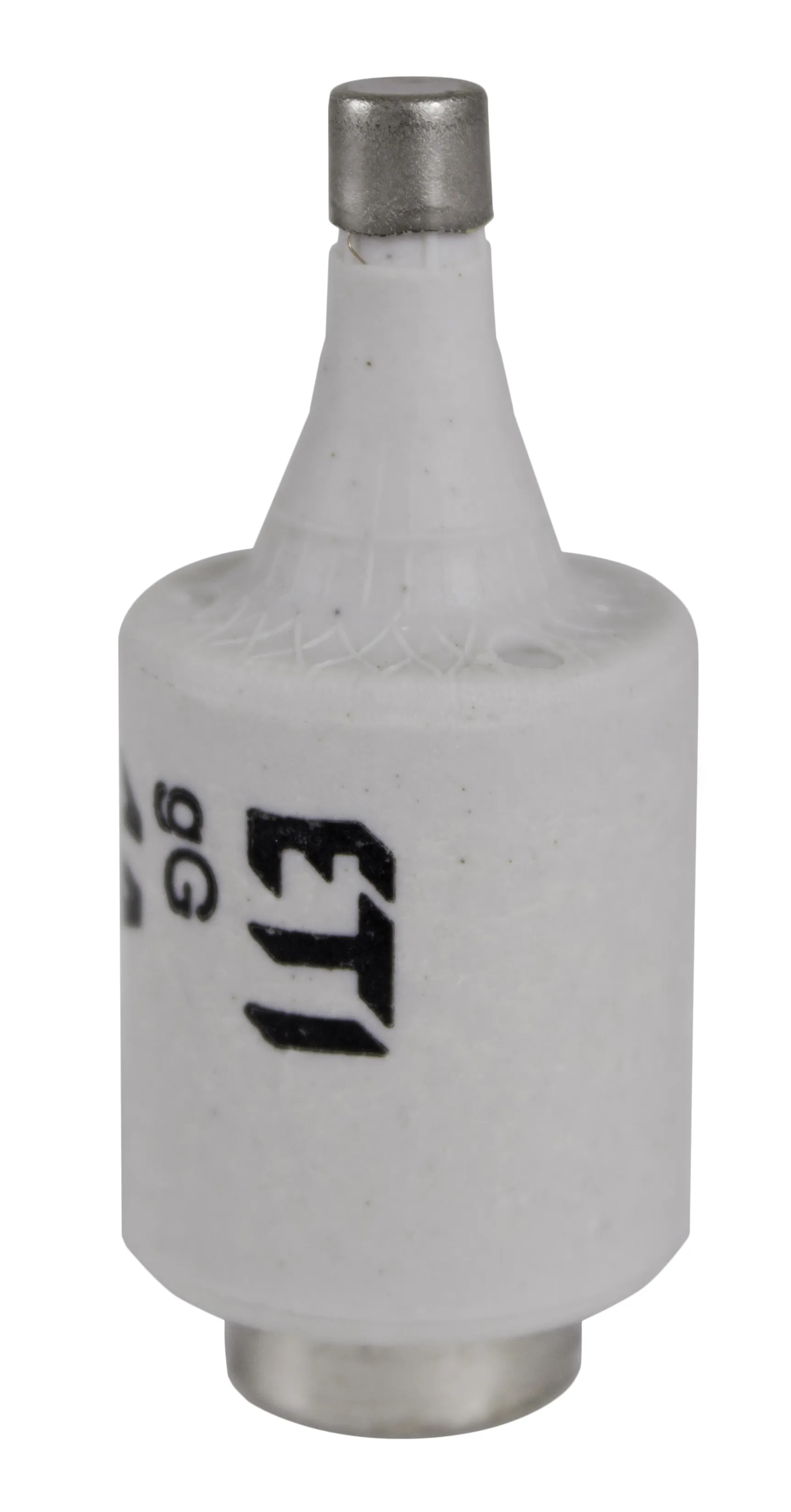

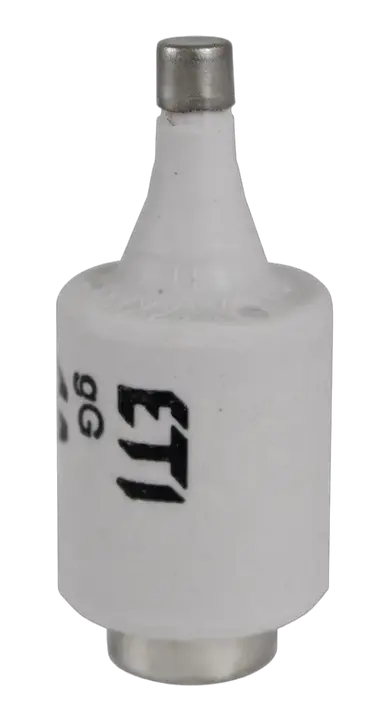

Fuse link DII gG 10A/500V 002312404

Specifications

ETI Code:
002312404
Description:
DII gG 10A/500V
Class name:
Fuse link
Type:
D
Size:
DII
Rated current (A):
10
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E27
Indicator:
Top fuse status indicator
Power dissipation (W):
1,62
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895906056
Net weight of the product
25 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895000044
Basic packaging weight
0.134 kg
Basic packaging volume
0.138

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163527
Transport packaging weight
13.85 kg
Transport packaging volume
17.4
Pallet quantity
26000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Breaking capacity
50
Colour code
Red
Construction size
DII
Max. rated operation voltage Ue AC
500
Rated current
10A
Rated voltage
500V
Rated voltage DC
250
Release characteristic
Time-lag
Type of fuse status indicator
Top fuse status indicator
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002312404Fuse link, DII gG 10A/500VDLow voltage fuse-linksFuse-link DDIITDZTDZFuse links D, D0, CD fuse linksDII GG 10A/500VTripping characteristic Time-lagRated current 10AType DRated voltage 500VSize DIIProduct group D Low voltage FusesCharacteristics gGRated AC voltage 500VRated DC voltage 250VDimensions E27Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 1,62WCatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DII D DII 10A 500V 250V gG
