002440853

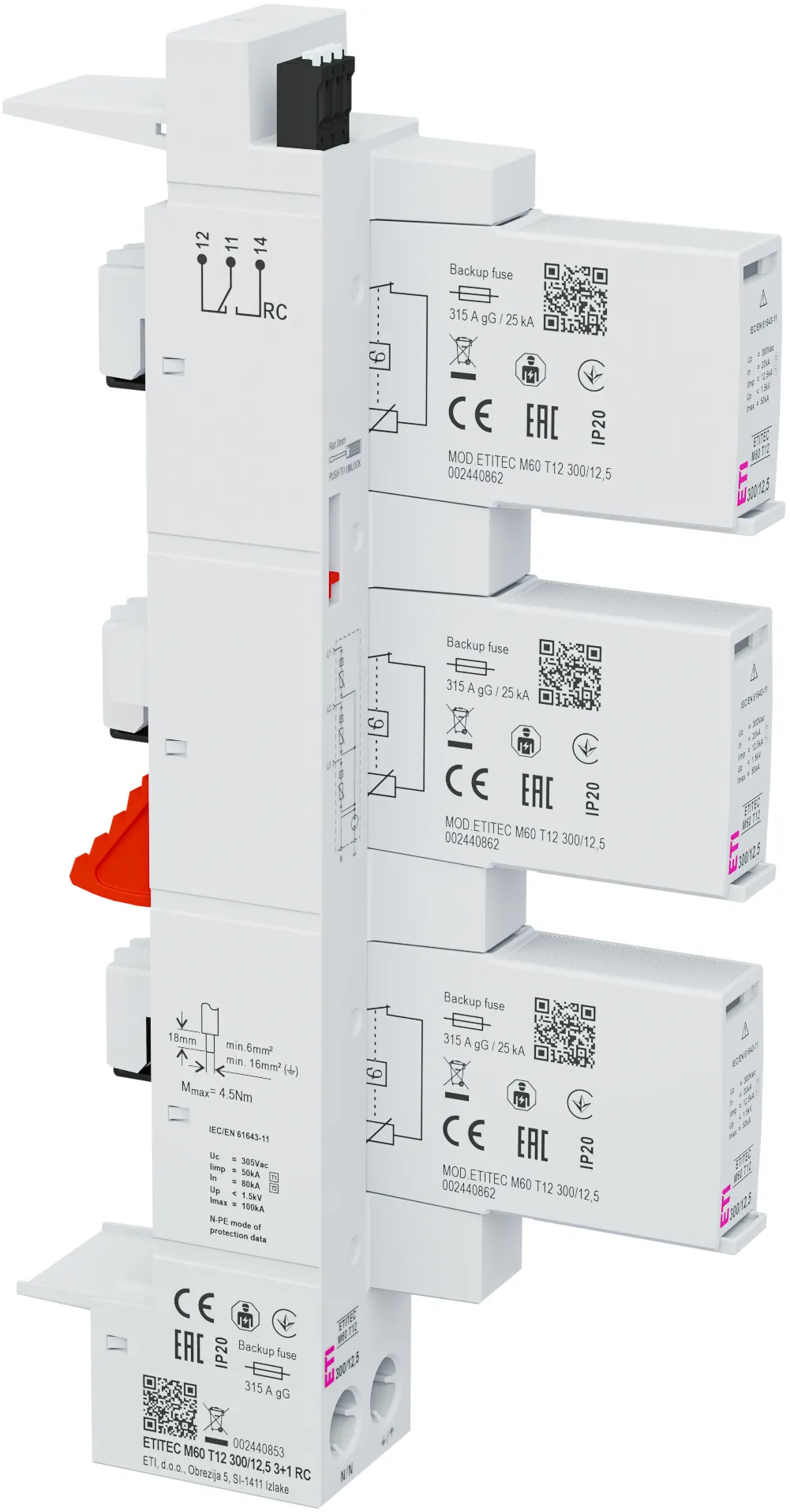

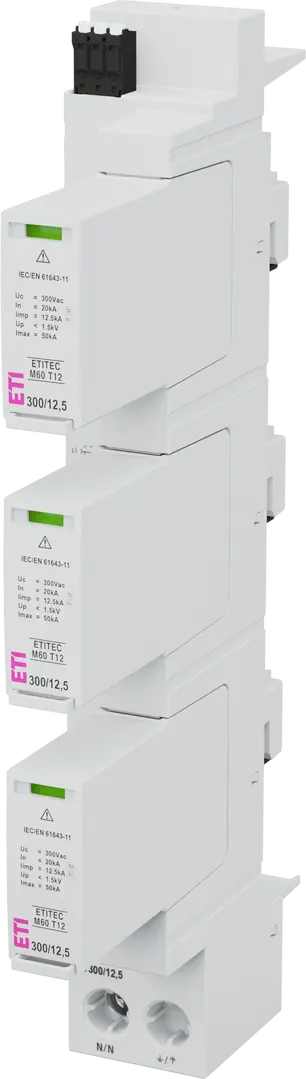

ETITEC M60 T12 300/12,5 3+1 RC Surge arrester
- ETI Code:
- 002440853
- Function:
- SPD
- Surge arrester type:
- T1, T2
- Continous operating voltage AC Uc:
- 300 V
- Iimp(10/350) impulse current:
- 12.5 kA
- Nominal discharge current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage protection level:
- 1.5 kV
- Remote signalisation:
- ✓
- Leakage current:
- ✓
- Network system:
- TT/TN-S
- Number of modules:
- 4
- Installation:
- Industrial building protection
- Built-in depth:
- 971 mm
- IP rating:
- IP20
- Applied technology:
- MOV
- Catalogue group:
- ETITEC M60
4 Documents
21 Logistics
Product
- Net weight of the product
- 0.617 kg
- Net width
- 36 mm
- Net height
- 244.5 mm
- Net depth
- 123.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400113207
- Basic packaging weight
- 0.711 kg
- Basic Packaging Dimensions Height
- 133 mm
- Basic Packaging Dimensions Width
- 44 mm
- Basic Packaging Dimensions Depth
- 262 mm
- Basic packaging volume
- 1.533 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838400113214
- Transport packaging weight
- 14.841 kg
- Transport Packaging Dimensions Height
- 395 mm
- Transport Packaging Dimensions Width
- 363 mm
- Transport Packaging Dimensions Depth
- 253 mm
- Transport packaging volume
- 36.276 dm³
- Pallet quantity
- 540 pcs
- Customs tariff
- 85363090
16 ETIM
- Remote signalling
- ✓
- Voltage protection level L-N
- 1.5 kV
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- Busbar
- Construction size
- Other
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Specific energy (W/R)
- 39 kJ/Ohm
- System configuration TN-S
- ✓
- Voltage protection level
- 1.5 kV
- Number of poles
- 4
- System configuration TT
- ✓
- Signalling at the device
- Optical
- Voltage protection level N-PE
- 1.5 kV
- Max. continuous voltage AC
- 300 V
ETIM Classification – Version 9.0
